chromic command interpreter

chromic.exe is a simple command language interpreter for controlling the SADs.  It's written in perl and compiled to an .EXE that will run under Windows.  The command script is placed in a plain text file which can be created using Notepad or any other text editor, however one that shows line numbers is useful since it will help you find any errors in the script.  (You might try SciTE)

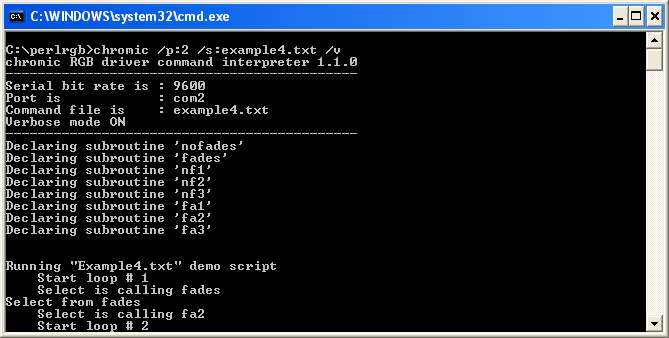

There is no GUI interface to this application and the exe file should be run from within a Windows DOS command shell.  (In Windows XP use start - run - cmd.exe)

There are a number of command line switches that can be used when starting the application.  These are listed below.  The '/s:filename' is not optional and must always be specified.

Bit rate and comport will use default values of 9600bps and Com1 if they're not specified.

C:\sad>chromic.exe /?


chromic RGB driver command interpreter
Version: 1.1.0

/s:filename Command file

/b:bitrate Serial bit rate [ 1200 | 2400 | 9600 | 19200 | 38400 ]
/p:comport Serial COM port [ 1 | 2 | 3 | 4]

/d Debug mode on

/v Verbose mode on


http:\\picprojects.org.uk\projects\zcode\



Software Download

Download chromic.zip
Current version is 1.1.5 (25/10/2007)
Tested with Windows XP Pro and W2K Pro



Commands Overview

All commands are in lower case

User defined colour and address names are case sensitive and should contain alpha-numeric and underscore characters only.  They must not contain spaces or commas.

Any line starting with a # character is treated as a comment and ignored.

Indenting and white space can be used to help the readability of the command script.

The following example scripts illustrate command useage:

example1.txt
example2.txt
example3.txt
example4.txt

servoExample.txt
servoExample2.txt

Running with the switches /v /d will provide verbose debugging information that shows what the script is doing.  Output from the example3.txt script can be seen here

define [colour | color]  colour_name = Rvalue, Gvalue, Bvalue

colour names can be defined anywhere in the command file but they must be defined before they are used by another command. You specify the Red, Green and Blue PWM components where 0 = 0% PWM for the channel and 255 = 100% PWM.   (%PWM / 100) * 255  = value

The command supports both British and American spellings of the word colour | color :-)

define colour red = 255,0,0
define colour myFavouriteColour, 240,126,182

define color forUSofA = 50,0,0

you can use a subroutine to put all your colour definitions at the end of the command file and use a call at the start of the file to keep the command script tidy.

sub colourDefs

define colour someColour    = 45,55,125
define colour anotherColour = 120, 240,9
define colour veryPurple     = 200,0,255

return

The following colour names are pre-defined:

black = 0,0,0
white = 255,255,255
red = 255,0,0
green = 0,255,0
blue = 0,0,255
magenta = 255,0,255
cyan = 0,255,255
yellow = 255,255,0

colour names can be redefined at any time, including the predefined names above.

define position position_name = Servo1_pos, Servo2_pos, Servo3_pos

servo position names can be defined anywhere in the command file but they must be defined before they are used by another command.  You specify the position for each of the three servo channels with a value anywhere between 0 and 255.

0 = -45o (1mS pulse), 255 = +45o (2mS pulse), 128 = 0o (1.5mS pulse)

define position home_hccw_hcw = 128, 64, 192
define position somePos = 50, 200, 138

The following servo position names are predefined

home = 128,128,128 move all servos to centre
ccw = 0,0,0 move all servos fully counter clock-wise
cw = 255,255,255 move all servos fully clock-wise

servo position names can be redefined at any time including the predefined names above

define address addr_name = addr_value, addr_value, ....

The define address command will take a single address value, or a comma separated list.  This can be used to create a single name that group a number of addresses to represent some physical arrangement of the SADs.  Address value must be in the range 0 to 255.

address names can be defined anywhere in the command file but they must be defined before they are used by another command

define address bigLED1 = 5
define address allDrivers = 255

define address LEDsquare = 1, 2, 3, 4, 16, 19, 32, 35, 48, 49, 50, 51

you can redefine an address name at any time, including the pre-defined addresses, though you probably don't want to do that.

pre-defined address names are:

gr[0-7] = 128-135
gc[0-15] = 144-159
all, broadcast = 255

the gr and gc names are used with the SADs group row and group column addressing modes.  (see packet protocol)

[ colour | color ] colour_name [nofade | fade fade_rate] to [ address | address_name]

the named colour is sent to all addressed SADs.  The colour will not appear at the PWM output until a 'transfer to' command is received

The command supports both British and American spellings of the word colour | color :-)

colour red fade 7 to bigLED1
colour blue nofade to 48
colour cyan fade 2 to LEDsquare

color forUSofA nofade to USA

position position_name [noslew | slew slew_rate] to [ address | address_name ]

values in the the named servo position are sent to all addressed SADs. The servo channels will not be updated with the new values until a 'move to' command is received.

position home noslew to myServos
position somePos slew 5 to otherServos

transfer to [ address | address_name ]

the transfer command instructs RGB SADs to move the values received in the colour command to the PWM output.

transfer to allDrives
transfer to 1

Once an SAD has transferred colour data to the PWM output it marks that data as 'old' and will ignore further transfer commands until it has received new colour data.  Therefore, if you send a transfer command to the broadcast address only SADs' with 'fresh' colour data will update their PWM output.

Important

With the addition of support for an RC Servo driver, the Colour and Servo drivers use a common data packet.  To help avoid accidentally sending colour data to a servo or vice-versa two different commands are used.  To further avoid problems, if a Colour driver receives a Servo move command it will assume any 'new' data it has may not have been intended for it and discard it.

To summarise:
If a colour driver receives a Servo move command it will:
1. Discard any new data it may have received.
2. Ignore the move command.

move to [ address | address_name ]

the move command instructs servo SADs to move the values received in a servo position command to the servo channel outputs

move to myServos
move to 50

Once an SAD has moved servo data to the servo channel outputs it marks that data as 'old' and will ignore further move commands until it has received new servo position data.  Therefore, if you send a move command to the broadcast address only SADs' with 'fresh' servo position data will update their servo channel outputs.

Important

With the addition of support for an RC Servo driver, the Colour and Servo drivers use a common data packet.  To help avoid accidentally sending colour data to a servo or vice-versa two different commands are used.  To further avoid problems, if a Servo driver receives a Colour transfer command it will assume any 'new' data it has may not have been intended for it and discard it.

To summarise:
If a servo driver receives a Colour transfer command it will:
1. Discard any new data it may have received.
2. Ignore the transfer command.



servo  channel  position  position to [ address  | address_name ]

Moves servo on channel to specified  position.  This is a direct command, the new position data being sent to the servo output channel immediately. There is no 'move to' command required.  Valid channel numbers are 1,2,3.  Position range is 0 - 255

move servo on channel 1 to position 128 at address 5

servo 1 position 128 to 5

move servo on channel 2 to position 60 at named address someServo

servo 2 position 60 to someServo

If a servo slew operation is in progress when this command is sent to a servo channel, the specified servo is immediately moved to the new position.  The other servos continue with the original slew operation.

Any servo data received through a 'position' command is unaffected by the 'servo' command. In the example below the first command would load the servo channel latches with 0, 0, 0 (fully counter clockwise).  The second line would immediately set servo channel 2 to position 128 (home).  Finally the last line would move all three servo channels back to position 0

position ccw noslew to 0
servo 2 position 128 to 0
move to 0



pause [ n_seconds | rand [ range_secs | base_secs range_secs ]]


 pauses for 10 seconds

pause 10

pauses for a random time between 1 and 10 seconds

pause rand 10

 pauses for a random time between 2 and 8 seconds

pause rand 2 8

The pause command will automatically send a 'keepalive' packet to the broadcast address every 120 seconds if the pause length is greater than 120 seconds.

fastpause [ n_10ths/secs | rand [ range_10ths/secs | base_10ths/secs range_10ths/secs ]]

fastpause operates in the same way as the pause command but all values are in 10ths / second

pauses for 1/10th second

fastpause 1

pauses for 1.5 seconds

fastpause 15

repeat n | next

repeats the section between the repeat and the next commands n times.

repeat 3

colour blue nofade to 0
colour red nofade to 1
transfer to gr0
pause 5

next

repeat / next blocks can be nested as shown below

repeat 2

colour red fade 2  to gr0
pause 5

repeat 4

colour blue fade 2 to gr0
pause 5
colour green fade 2 to gr0
pause 5

next

next

sub sub_name | return

the section of code between the sub and return commands are defined as a subroutine and can be executed using the call command.  Subroutines can be defined anywhere in the command file.

sub redFadeRows

colour red fade 3 to all
transfer to gr0
pause 2
transfer to gr1
pause 2
transfer to gr2
pause 2
transfer to gr3
pause 2

return

call sub_name

calls the named sub routine

call redFadeRows

subroutines can be called from within another subroutine.

sub group2subs

call firstSub
call secondSub

return

Important. Subroutines are not re-entrant so you shouldn't call a sub from within itself.

Don't do this:

sub someFunc
   pause 2
   call someFunc
return

select from [subname1, subname2, .....]

randomly selects one subroutine from the list and calls that subroutine

select from redFade, greenFade, blueFade, cyanSlow, magentaSlow, yellowSlow

use within a repeat next loop to run random effects

repeat 10
    select from fastRainbow, slowRainbow, warmRedFade
next

pwm [ enable | disable ] to [ address | named_address ]

enables or disables the PWM output on the SAD.  This command shuts down the PWM output hardware but does not affect the operation of the SAD.  It will continue to receive and process packets and can update with new colour and fade data while the PWM output is shutdown.  When an enable command is received, the PWM output will be driven with the current PWM data.

pwm enable to 5

pwm disable to all

print " text "

the print command sends text to the screen.  You can use this command to help see what the script is doing.

print "Running subroutine 1"

screen shows Running subroutine 1

print "Running "redFading" subroutine"

screen shows Running "redFading" subroutine

keepalive

sends a keepalive packet to the broadcast address

restart

restarts execution of commands from the beginning of the command file

stop

stops and exits, returning to the windows command line.
