Description

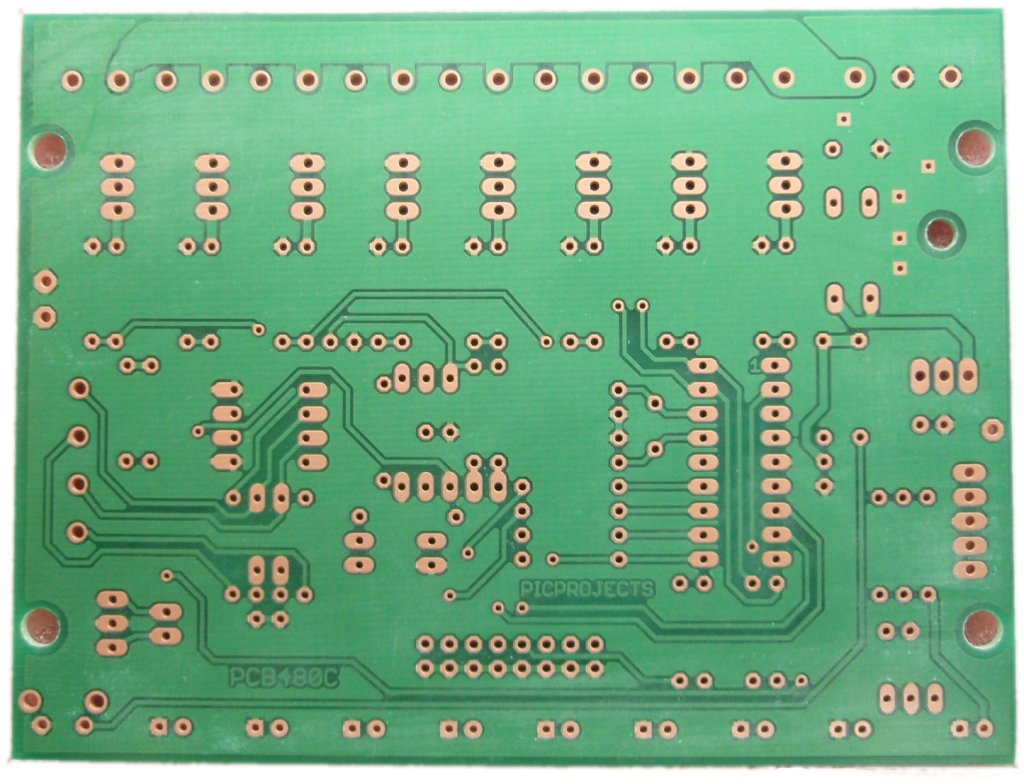

Having PCBs manufactured in small quantities is very expensive, the more you have made in a batch the cheaper the unit cost per board.  For this reason it's common in the electronics industry to have a single PCB design that can be used in a number of similar products by adding / omitting some components or changing the microcontroller firmware.

Picprojects PCB480 has been designed to be used in a number of different projects and therefore depending on which project you build many of the component positions on the PCB will not be used.

When assembling a project using this PCB please follow the schematic and construction information on the specific project page.

For a full schematic and details of all the features of the PCB see here
