Practical PIC Projects





RGB LED PWM Driver
Standalone PWM
controller for  RGB LEDs
using 12F6xx PIC







New for Autumn 2010 - RGB LED Mood Light Project

Revised design, easy to build and now available as a complete kit

See here for details

Want to build an RGB LED controller that you can program with your own custom sequences and effects? Then read on.

The RGB LED controller has proved to be very popular project and has been the most frequently downloaded code on the site since it was made available.  I've been contacted by people who have incorporated this project into all kinds of things including mood lamps, lighting for a sculpture, accent lighting for rooms and an illuminated prize trophy.

For 2006 I  completely rewrote the application making it much easier to add, edit and change the sequence data.  I also added a sleep function so a battery operated version can be built that doesn't need a power switch.

For 2008 I've released version 3 of the code which now allows you to stop the running sequence at any point so you can 'freeze' a colour.

All code runs on the 12F629, 12F675 and the newer 12F683 which, with 2K of program memory has plenty of room for user sequences.


Description

The original RGB PWM driver application that I wrote in 2004 had a few shortcomings. Probably the biggest was that it was not easy to add to or change the sequences.  This new version addresses that problem, is more flexible and now includes the ability to put the PIC to 'sleep' and 'wake' it again using the sequence select switch, eliminating the need for an on/off switch in battery powered applications.

The circuit uses (RGB) Red, Green and Blue high brightness LEDs that are pulse width modulated (PWM) to vary the intensity of each colour LED.  This allows effectively any colour to be generated with rapid changing strobe effects, fast and slow colour fades as well as static colours.   The data used to set and change the colours is held in an easy to edit file so if you don't like the sequences provided with it, you can modify the sequence data include file yourself and reprogram with your own sequences.

The code can be assembled for use with the following PICs: 12F629, 12F675, 12F683.  Just select the correct processor in the MPLAB IDE before assembling.



How bright are the LEDs

That depends on the specific LEDs you use, the current you drive them with, the angle your view them from etc........

If you want to know I suggest the best thing to do is buy the LEDs you're planning to use and connect them up directly to a power supply using a suitable current limiting resistor.  If the brightness meets your expectations than go ahead and build this project, but if they don't they aren't going to be any brighter in this circuit so you probably need to look at an alternative solution like a large array of LEDs driven with the Power MOSFET Driver project

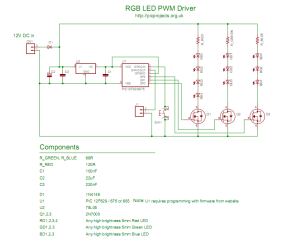

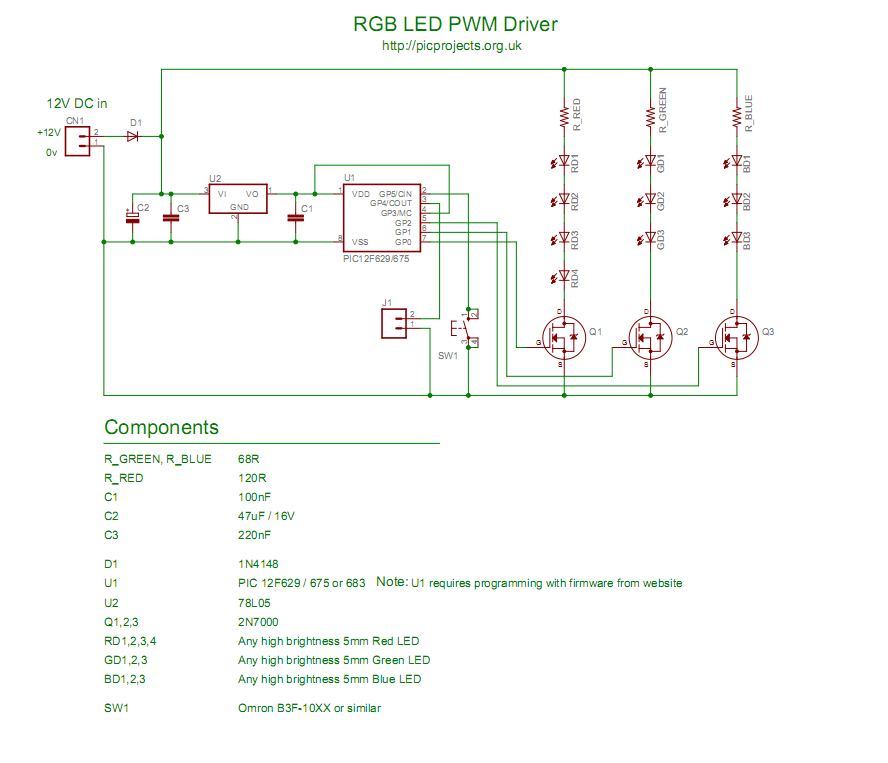

Schematic and PCB artwork

Download schematic as PDF

Since I do not know exactly which LEDs you will use I've specified the LED current limiting resistors on the conservative side.  You may want to change the value of these resistors to suit the actual LEDs used.  Keep the current per channel to under 40mA maximum.

LED resistor calculator http://led.linear1.org/led.wiz

If you wish to etch your own board, you can download the PCB artwork as PDF
For the component overlay, please refer to the photo's below

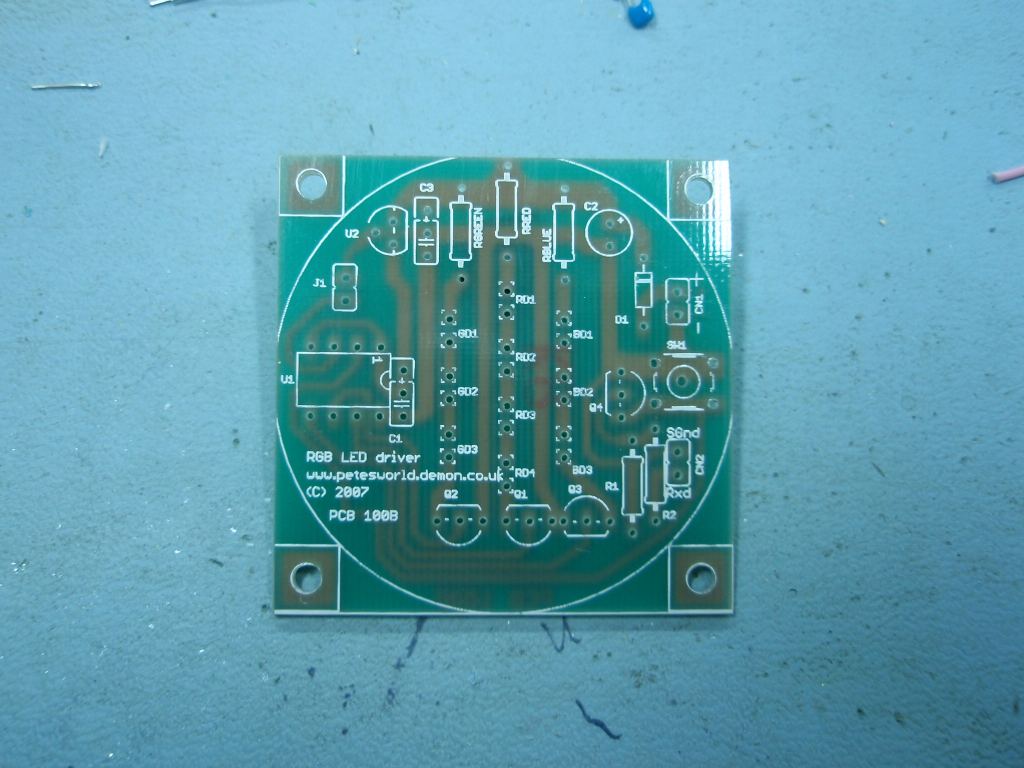

Construction & PCB

Photo.2 Photo.3 Photo.4
Photo.1 Photo.2 Photo.3 Photo.4
Photo.5 Photo.6 Photo.7 Photo.8
Photo.5 Photo.6 Photo.7 Photo.8
Photo.9 Photo.10 Photo.11 Photo.12
Photo.9 Photo.10 Photo.11 Photo.12
Photo.13 Photo.14 Photo.15 Photo.16
Photo.13 Photo.14 Photo.15 Photo.16
Photo.17 Photo.18 Photo.19 Photo.20
Photo.17 Photo.18 Photo.19 Photo.20

Construction Notes:

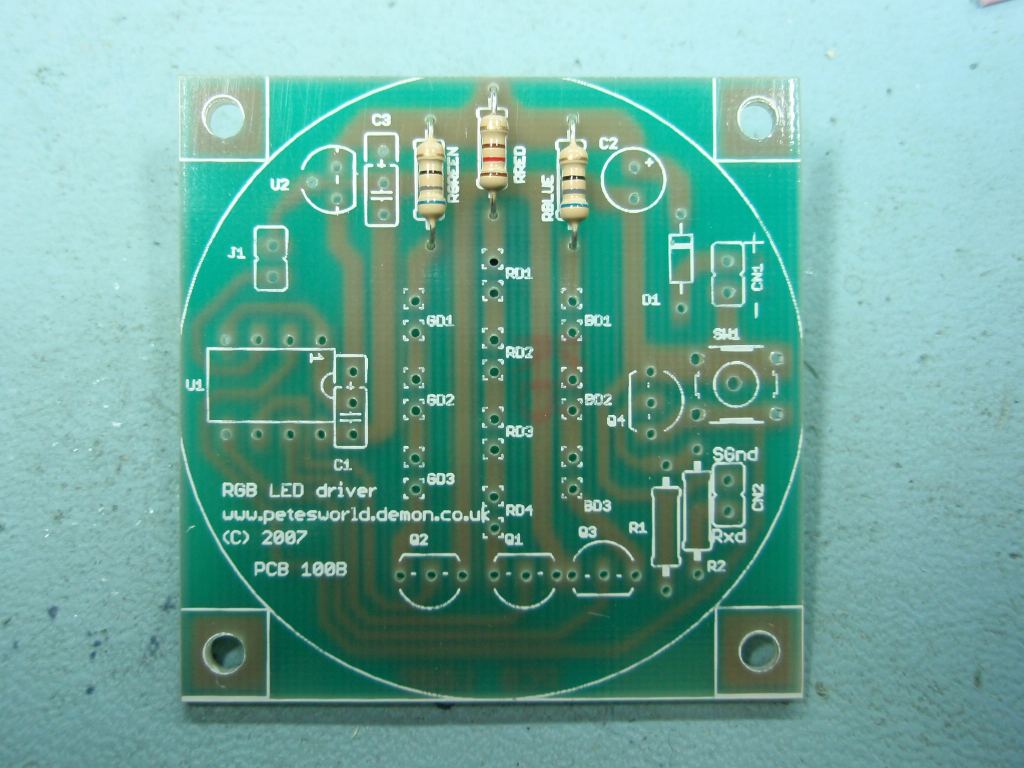

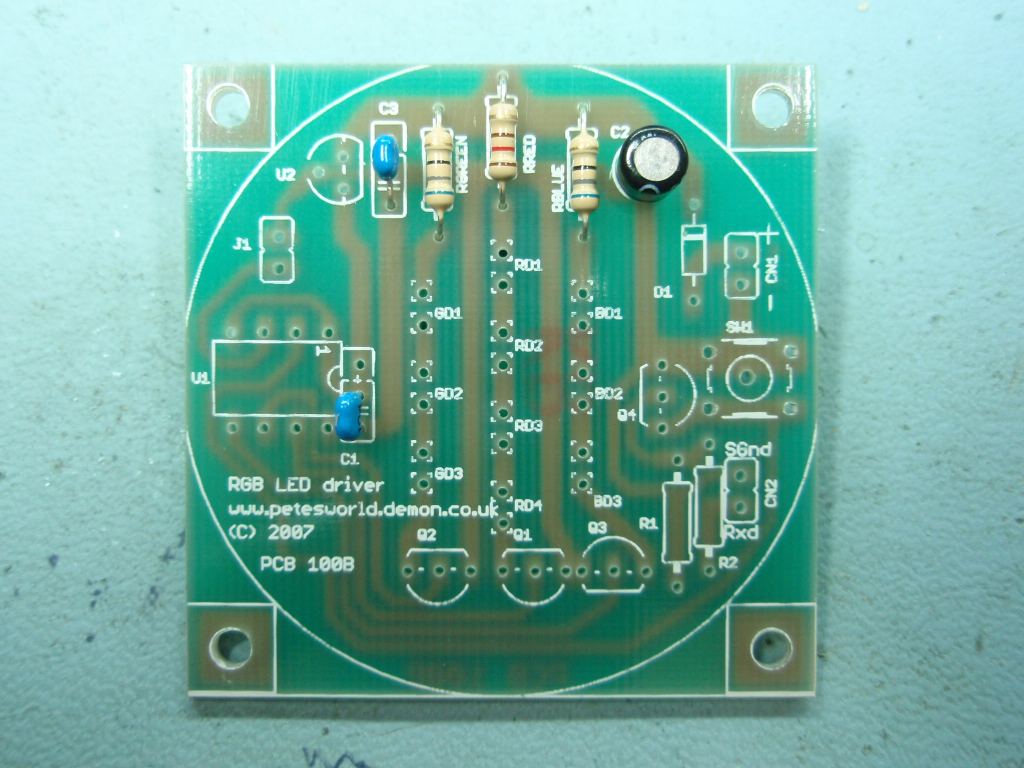

Photo.3  Capacitor C2 must be fitted the correct way round with the negative terminal towards D1

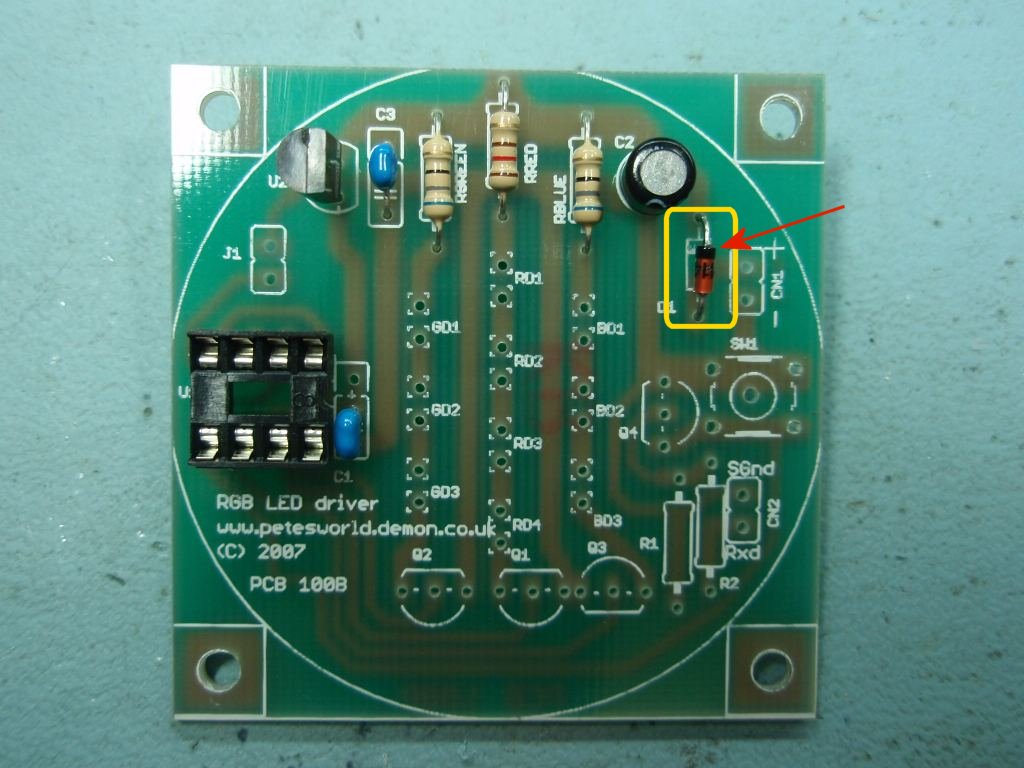

Photo.4 Diode D1 must be fitted the correct way round with the band on the diode matching the PCB overlay.

Once you've fitted all the parts shown in this photo if you have a voltmeter handy it's worth hooking up a 12V supply to CN1 and checking that 5 volts appears between pins 1 and 8 of the IC socket for U1.

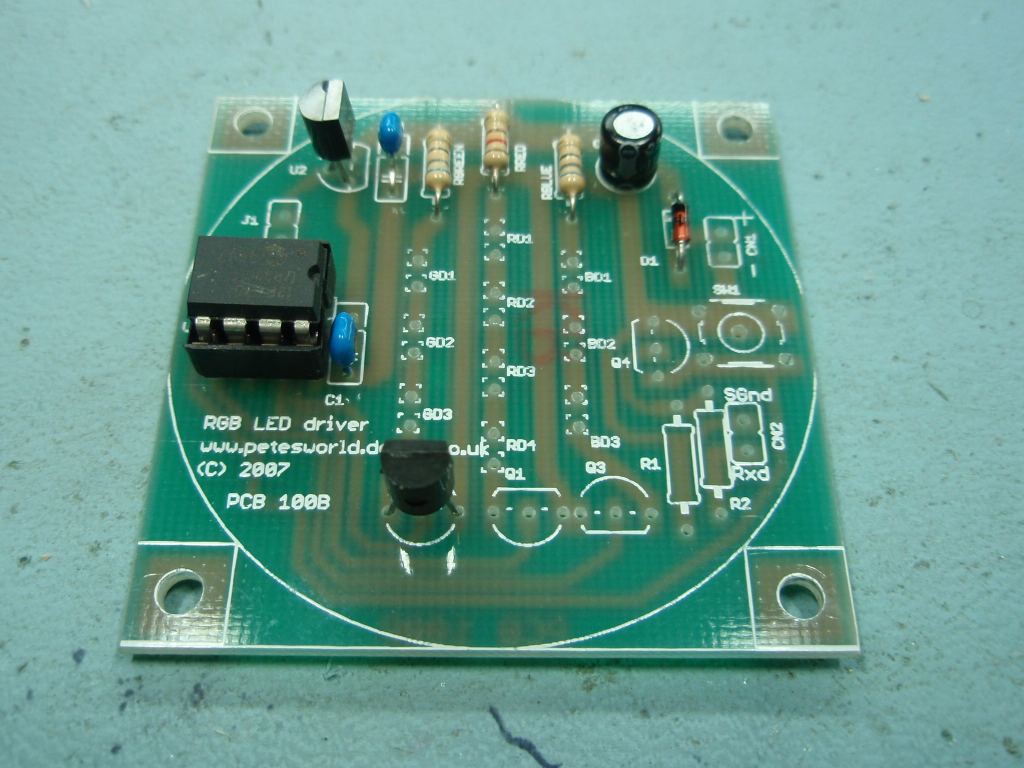

Photo.5  Before installing transistors Q1,2,3 install the PIC into its socket. It doesn't matter if you haven't programmed it at this time. (but don't forget to do so before testing!)

Note the small notch at one end U1.  It must be installed the correct way round, with the notch towards the centre of the PCB.

Photo.6/7  Install the transistors Q1,2,3.  These are MOSFET devices and are very sensitive to static discharge so make sure you observe full ESD (anti-static) handling precautions.

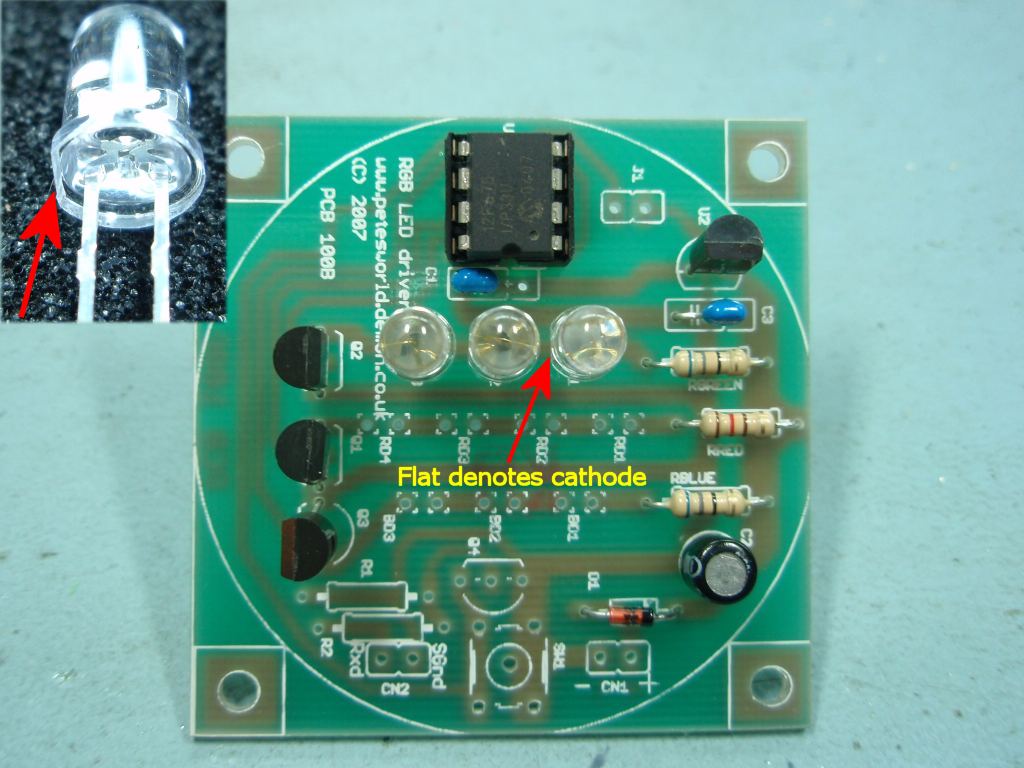

Photo.8    The LEDs need to be installed the correct way round.  The cathode lead of each LED should be in the hole nearest the transistor Q1,2,3.  The anode lead toward the three resistors

5mm LEDs normally have a flat edge on the body of the diode and this denotes that the lead nearest to the flat is the Cathode.  This is highlighted in photo.8

It is worth checking one LED of each colour before installing to make sure the flat is nearest the cathode for the specific LEDs you are using.  You can do this by connecting the LED in series with a 150 ohm resistor to a 5 volt supply.  When the LED lights, the lead connected to the 5 volt negative or ground terminal is the cathode.

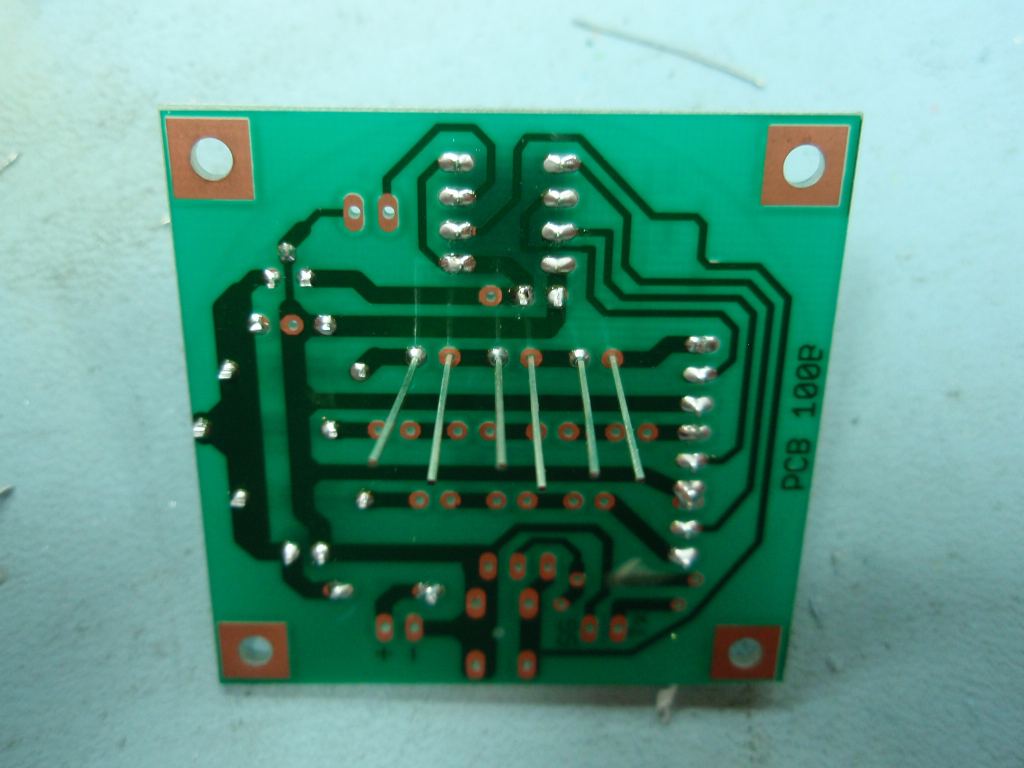

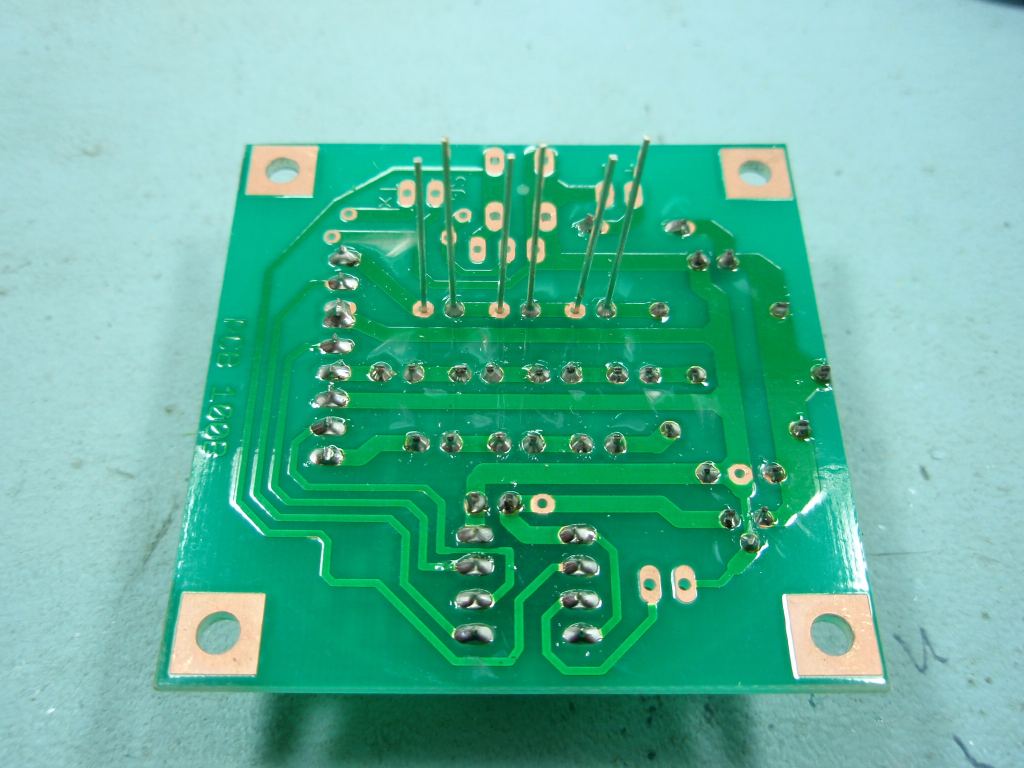

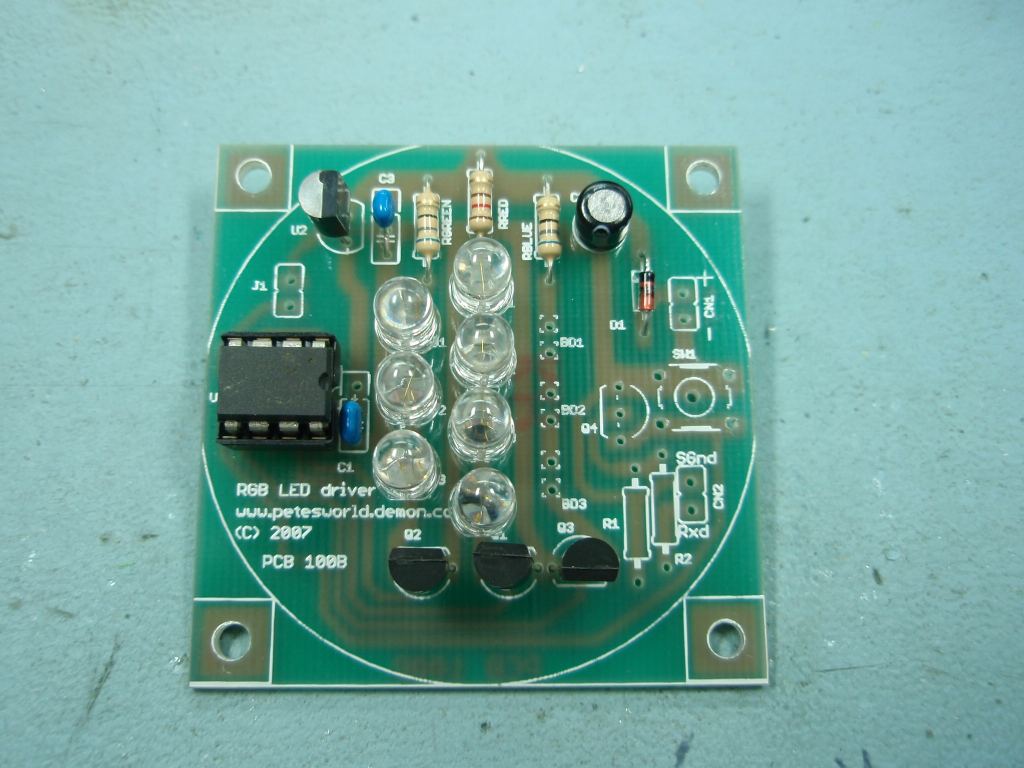

Photo.8/9  Install each set of LEDs one colour/column at a time.  To make it easier to align the body of the LEDs, solder one lead of each LED. (Photo.9)  Then move the LEDs until they are straight and aligned with each other before soldering the remaining leads in place.  Don't try aligning them with both leads soldered to the PCB because it may rip the track off the board.

Photo.11/12  Use the same method for installing the remaining LEDs.

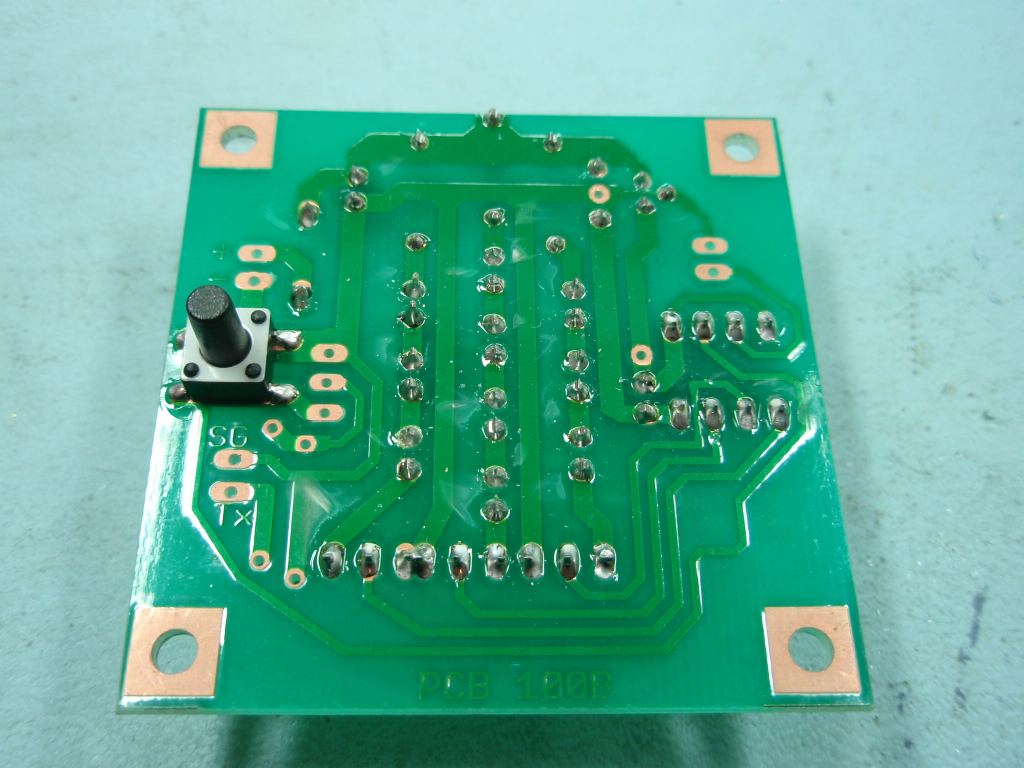

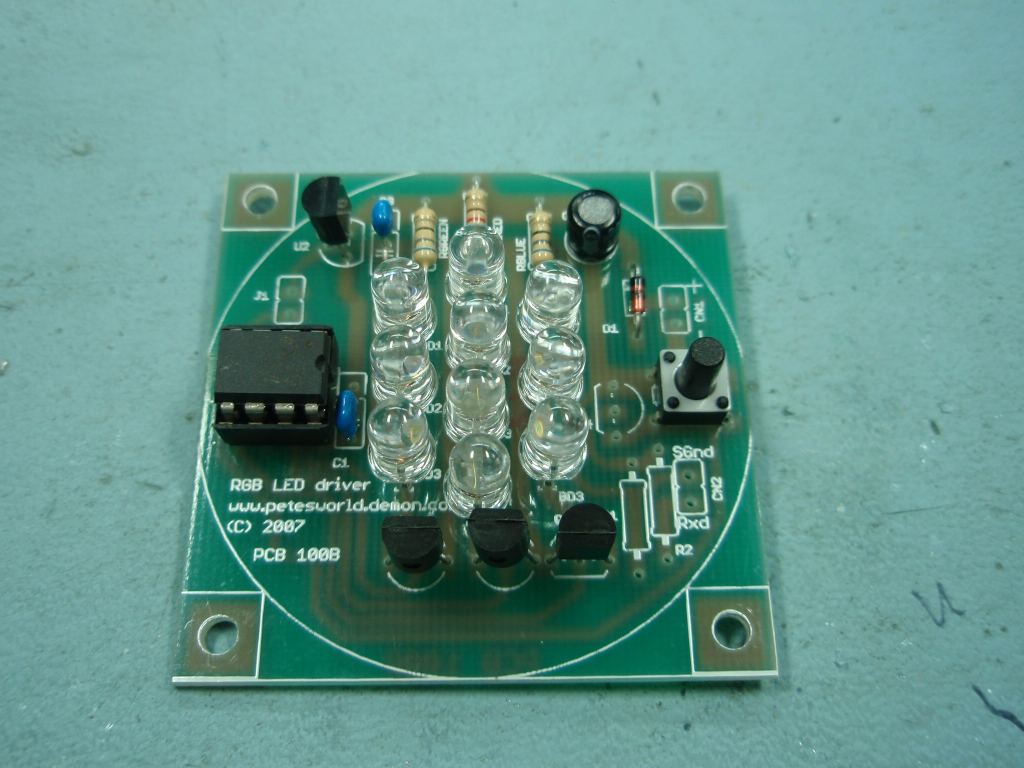

Photo.12/13  Switch SW1 can be installed on either side of the PCB depending on your application.  In Photo.13 it has been installed on the underside because it will be fitted into a plastic case.

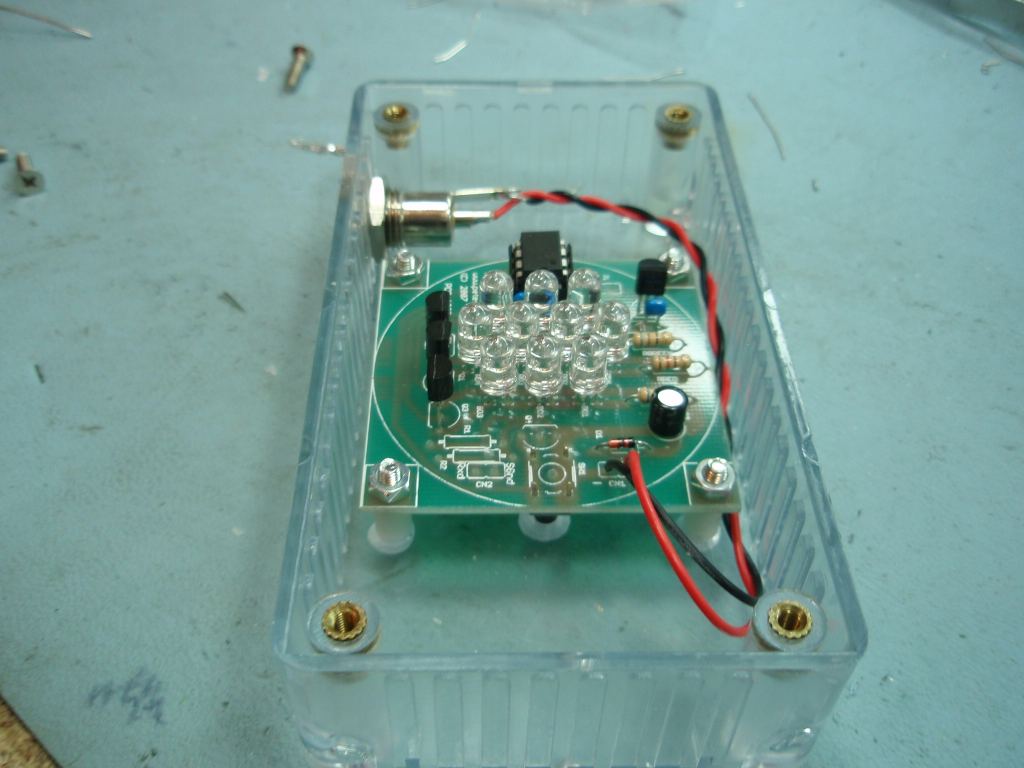

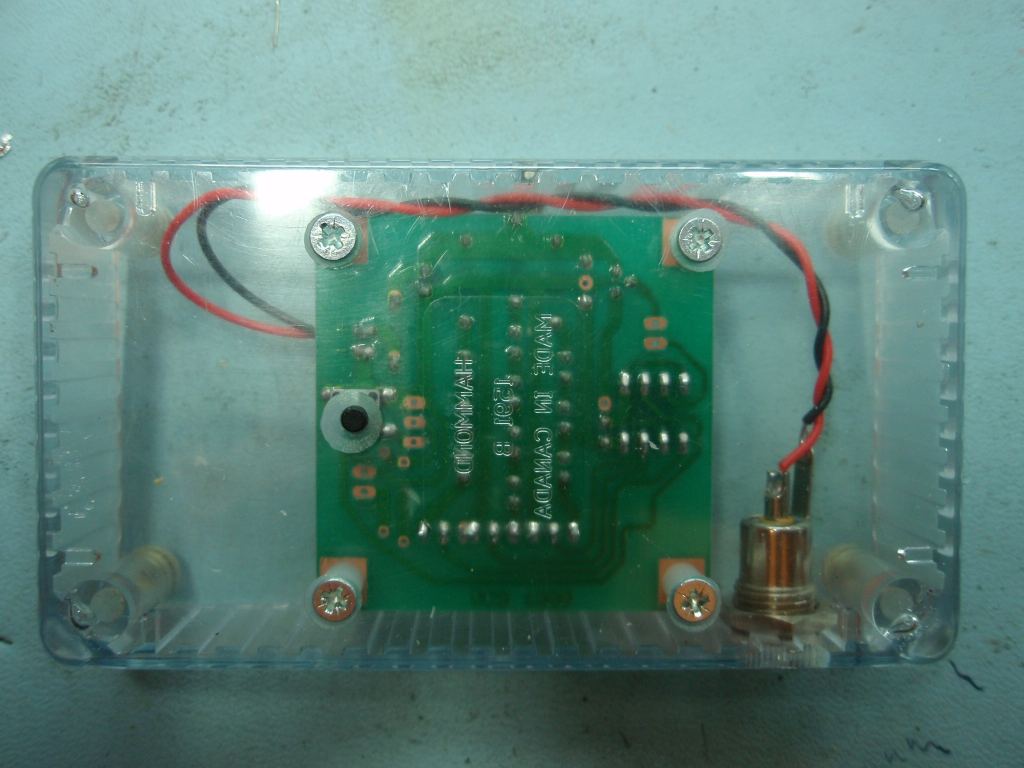

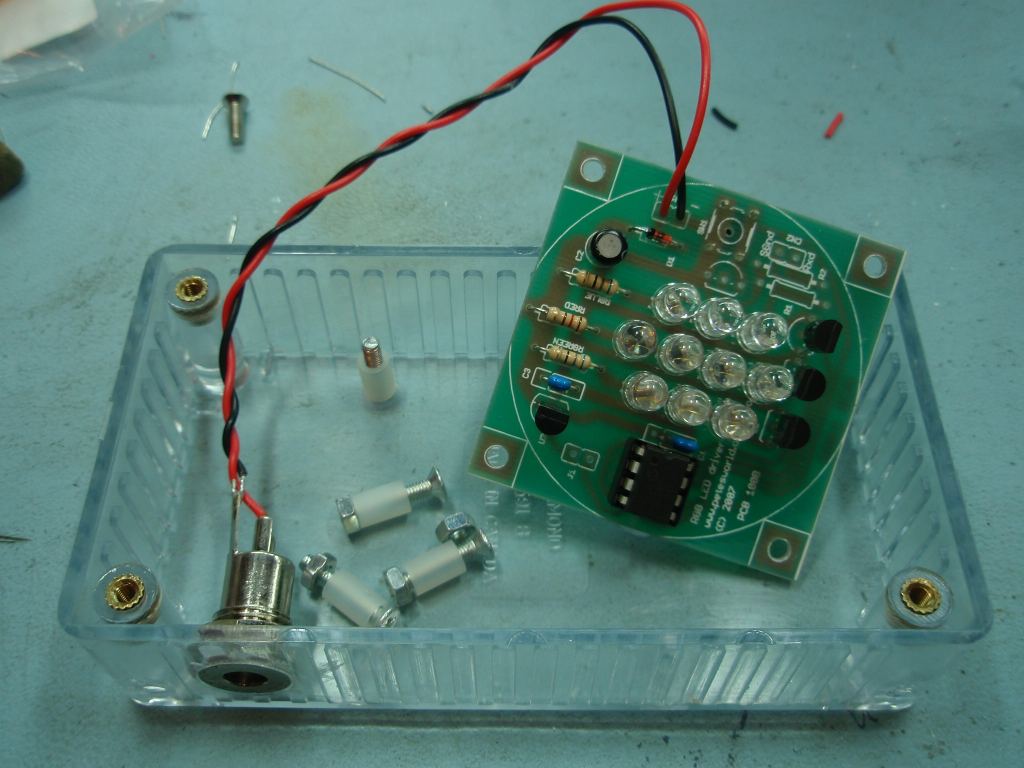

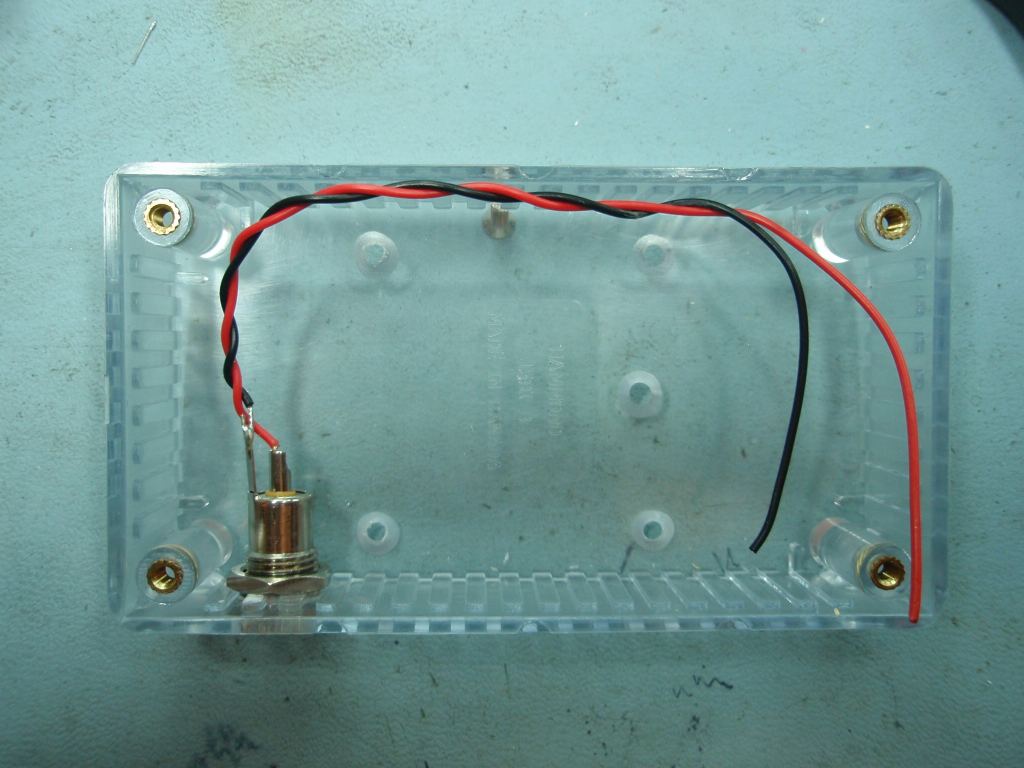

Photo.14/15  Before assembling the PCB in to a case, now is a good time to test the board to make sure it's working.

  • Check the solder joints and make sure there are no bridges between any of the connections
  • Make sure you have programmed the PIC with the firmware code from this webpage.
  • If any of the LED columns don't turn off, while others do the most likely cause is a failed (ESD damage) drive transistor - they usually fail shorted rather than open circuit.

Troubleshooting.
I assume you have some experience of constructing electronic circuits and have a basic knowledge of electronics and the components used.  The circuit is very simple but if you do have problems click on the following link for some basic things to test and check:  Troubleshooting page

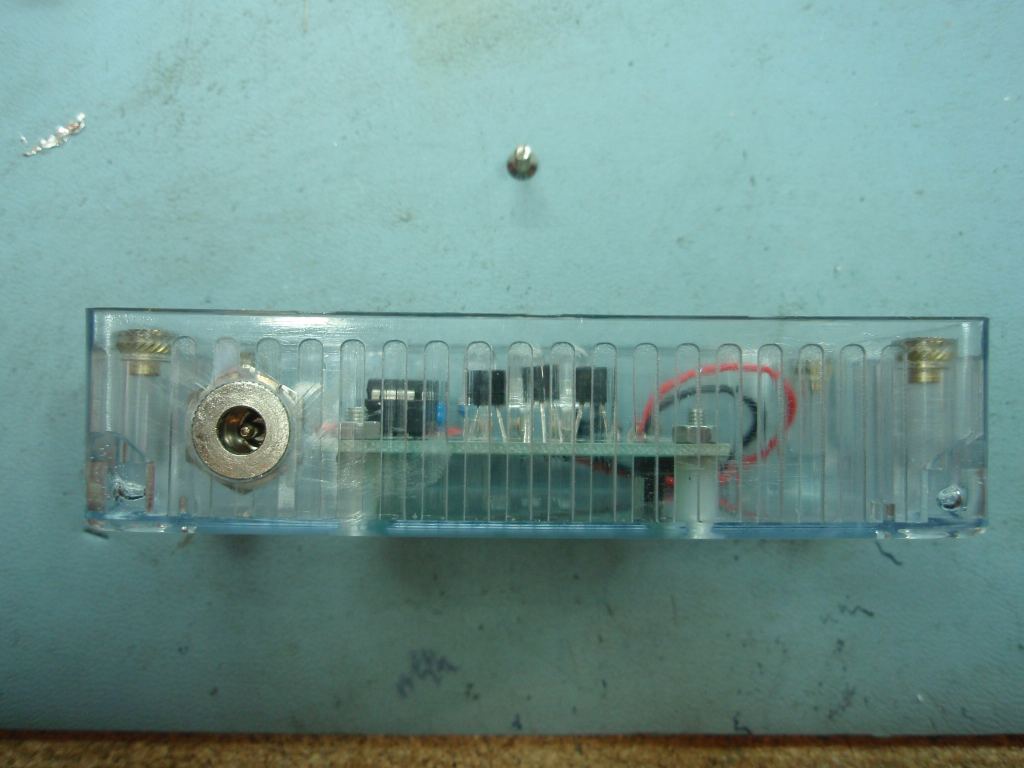

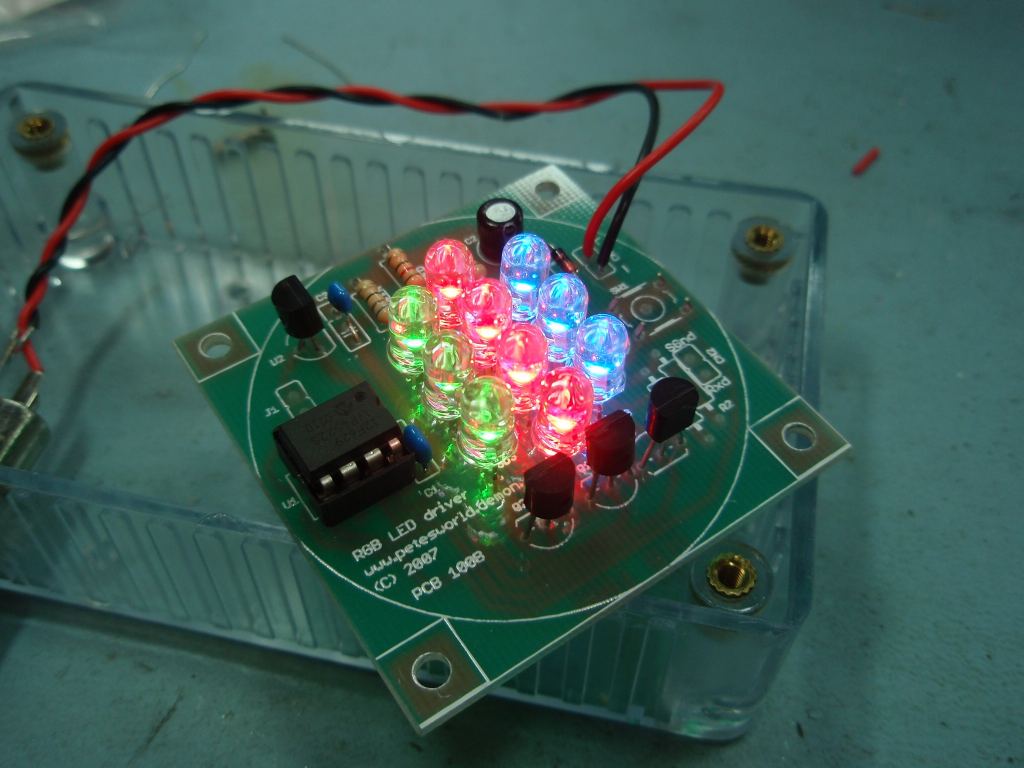

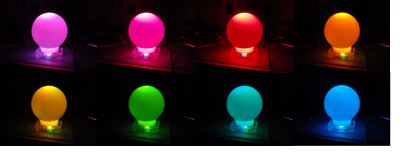

Photo.14-20  You can use the LED driver for many different applications, some of which are shown below.  For the construction photos' I've built it into a transparent case (Hammond 1591BTCL 112mm x 62mm x 27mm)




Where to get parts

You can buy the bare PCB or a PCB + ready programmed PIC from my online shop

I don't sell complete kits of parts for this project but you can buy all the other components needed from Rapid Electronics.  All these parts should be easy to source from other component suppliers worldwide.

All Rapid parts/descriptions correct at 2-November-2008.  You should check part# and descriptions are correct when ordering in case I've made a mistake transferring them onto this page.



Component Description Part #
R_RED (order 1 pack) PK 100 120R 0.25W CF RESISTOR (RC) 62-0348
R_GREEN. R_BLUE (order 1 pack) PACK 100 68R 0.25W CF RESISTOR (RC) 62-0342
C1 100N 2.5MM X7R DIELEC.CERAMIC (RC) 08-1015
C2 5MM MICROMIN. 47UF 16V ELECTROLYTIC (RC) 11-1510
C3 220N 5MM Y5V DIELECT.CERAMIC (RC) 08-0280

socket for U1 8 PIN 0.3IN DIL SOCKET (RC) 22-0150
U1* PIC12F629-I/P (RC) ( Needs programming ) 73-3262
U2 DA78L05 V REG +5V 100MA TO-92 TRU (RC) 47-3612
D1 1N4148 SIGNAL DIODE 75V 150MA (TRU) RC 47-3416
Q1,2,3 (order 3)** 2N7000 N CHANNEL MOSFET (RC) 47-0180
S1 TACTILE SWITCH 6X6MM HEIGHT 7MM (RC) 78-0622

Red LED (order  4) LED 5MM HB RED 20000MCD (RC) 55-2476
Green LED (order  3) LED 5MM HB GREEN 30000MCD (RC) 55-2480
Blue LED (order 3) LED 5MM HB BLUE 12000MCD (RC) 55-2482

Not shown on the schematic but you may also want to buy
DC Power connector NICKEL 2.1MM DC POWER SOCKET (RC) 20-1070
Power supply 5W SWITCH MODE PLUGTOP PSU 12V 400MA RC 85-2927
PIC Programmer PICKIT2 STARTER KIT (RC) 97-0101


* You can also use a 12F675 or 12F683 for U1, the 12F629 is listed because it's cheapest.
** You need 3 x 2N7000 MOSFETs, however I recommend you buy a few extra in case you damage them during construction.

What LEDs to use

The LEDs listed above are those I used in the build photo's on this page, however you can use almost any 5mm high brightness LED with this design.

Your choice of LED's really depends on what you want to do, how much you want to spend and so on.  I've built a lot of these LED drivers and used various LEDs from different suppliers.    If you use different LEDs you might also want to alter the values of the current limiting resistors.  If you do this ensure you're operating the LED within the manufacturers ratings and  keep the total current for all three LED colours under 120mA because D1 is only rated to 150mA absolute maximum.

LED resistor calculator http://led.linear1.org/led.wiz

Turn water clear LEDs into diffused LEDs the easy way.

Almost all high brightness 5mm LEDs come in a clear plastic package and have a narrow viewing angle. These are great for spot effects but for many applications like mood lamps what you really want is a diffused LED.   Plasti-kote's glass frosting spray is a quick and easy way to make clear LEDs diffused.

I've used the frosting spray on LEDs with this project and it really improves the colour mixing effect.




Operation

  • When the PIC is first powered on after programming, it should start running the first RGB sequence found. If you're using the original sequences supplied with the code here it will run a sequence of red-fade out, green-fade out, blue-fade out repeatedly.

  • Press the SW1 sequence select switch to step through all available sequences. When the last sequence has been reached it will go back to the first available sequence.  Each time the SW1 switch is pressed the RGB LED PWM values are set back to 0 (LEDs off)

  • Press and hold SW1 switch for about 1.2 seconds to put the PIC into sleep mode.  Once in sleep mode, press the SW1 switch for about 2 seconds then release it to wake the PIC from sleep. If the SW1 button isn't held for two seconds the PIC returns to sleep - this prevents the circuit from being accidentally turned on.  When  operating the RGB controller from batteries (without a 78L05 regulator) a power on/off switch is no longer needed since the PIC uses only a few microamps when 'sleeping'

  • About 10 seconds after the SW1 sequence switch is last pressed the currently selected sequence number is saved to non-volatile EEPROM memory.  When the RGB LED driver is next powered on, the saved sequence number is read back and will automatically start running.

  • Anytime the PIC is put into sleep mode by holding SW1 switch down, the currently selected sequence is also saved to EEPROM.

  • J1 controls the output drive level
    • J1 open - outputs are active high
    • J1 closed - outputs are active low

    This feature allows the flexibility to use the PIC/firmware with alternative hardware designs.

    When used with the project described on this webpage, J1 should be left open.


Design Ideas

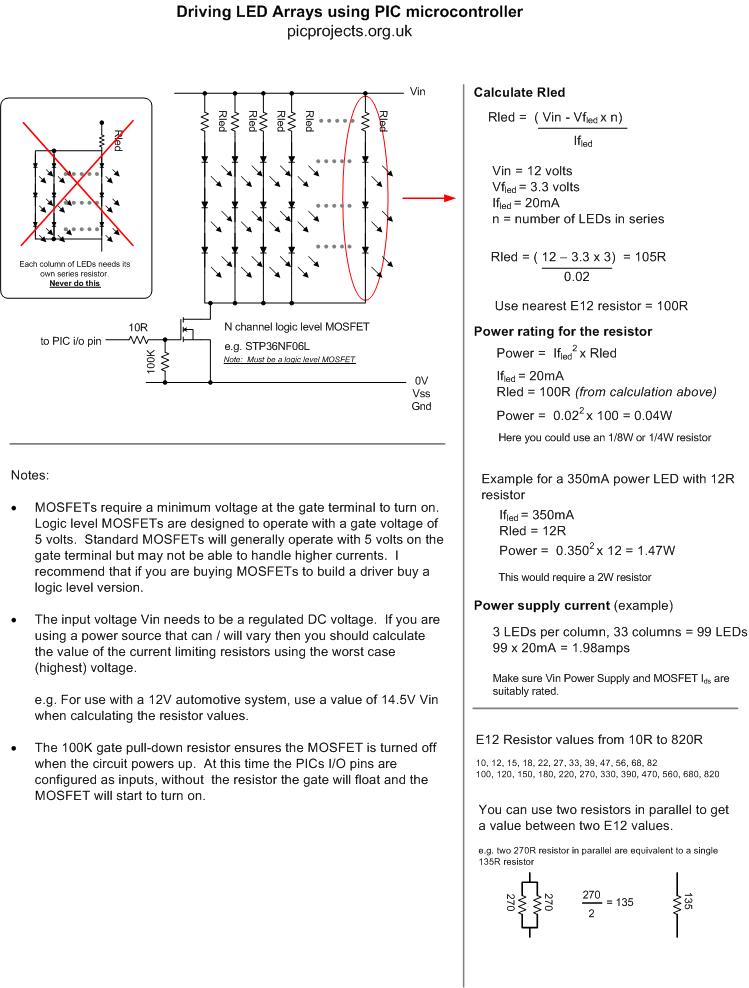

Driving large arrays of LEDs

Because the firmware code in the PIC simply generates three Pulse Width Modulated signals it can be used to control almost any LED driver circuit.  I often get asked if it can drive more LEDs, higher current LEDs etc.  To that end the circuit shown below is a generic driver design that will work for most applications.

If you want to drive large arrays of LEDs using the PIC you need to use a logic level power MOSFET.   Depending on the input voltage and the forward voltage of the LEDs used, you may be able to increase the number of LEDs in each column.  You could also use this type of circuit to control higher wattage LEDs, but remember the power rating of the LED current limiting resistor needs to be taken in to account. (power dissipated in the resistor is = I2R )

PDF version


New for November 2008
RGB Power MOSFET Driver

Full construction details, PCB artwork and schematic here

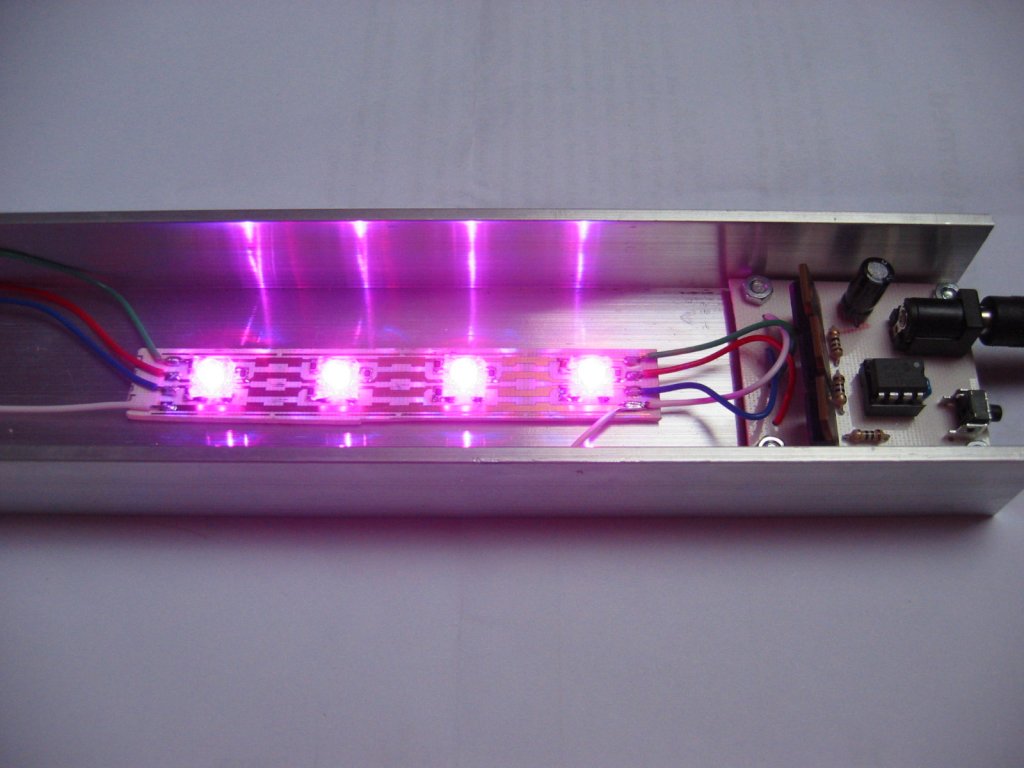

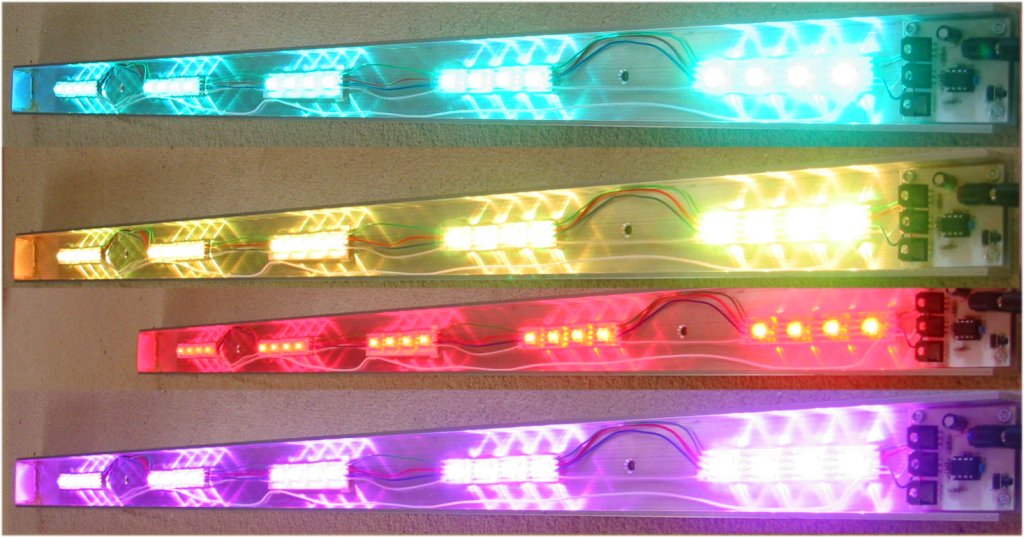

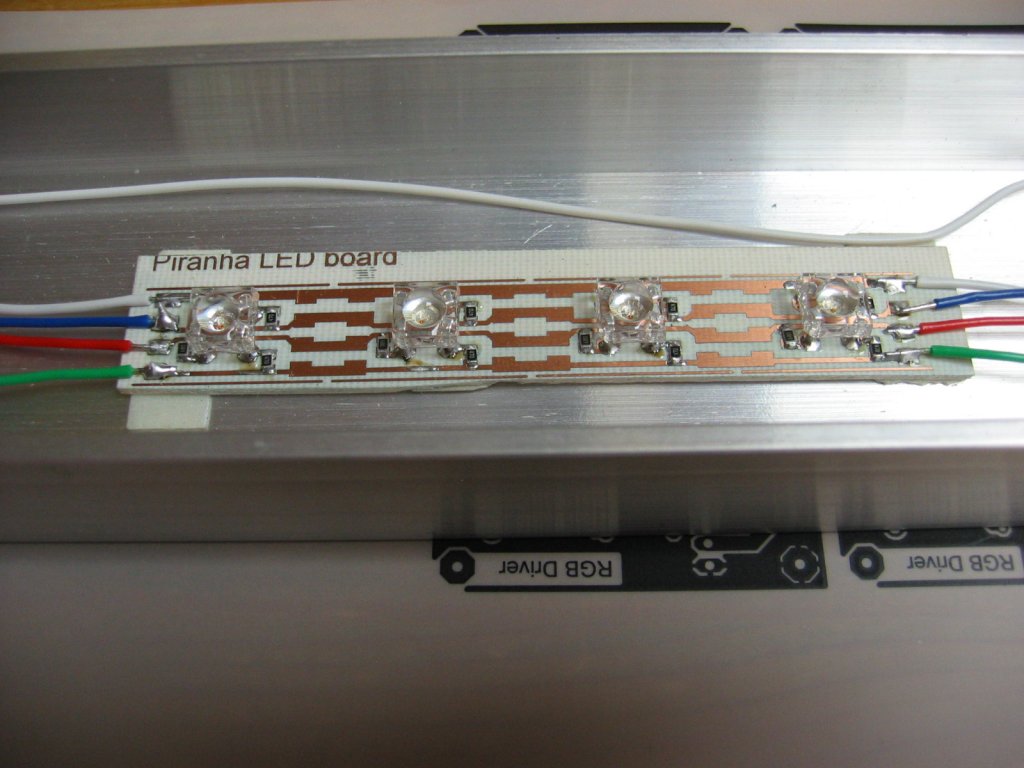

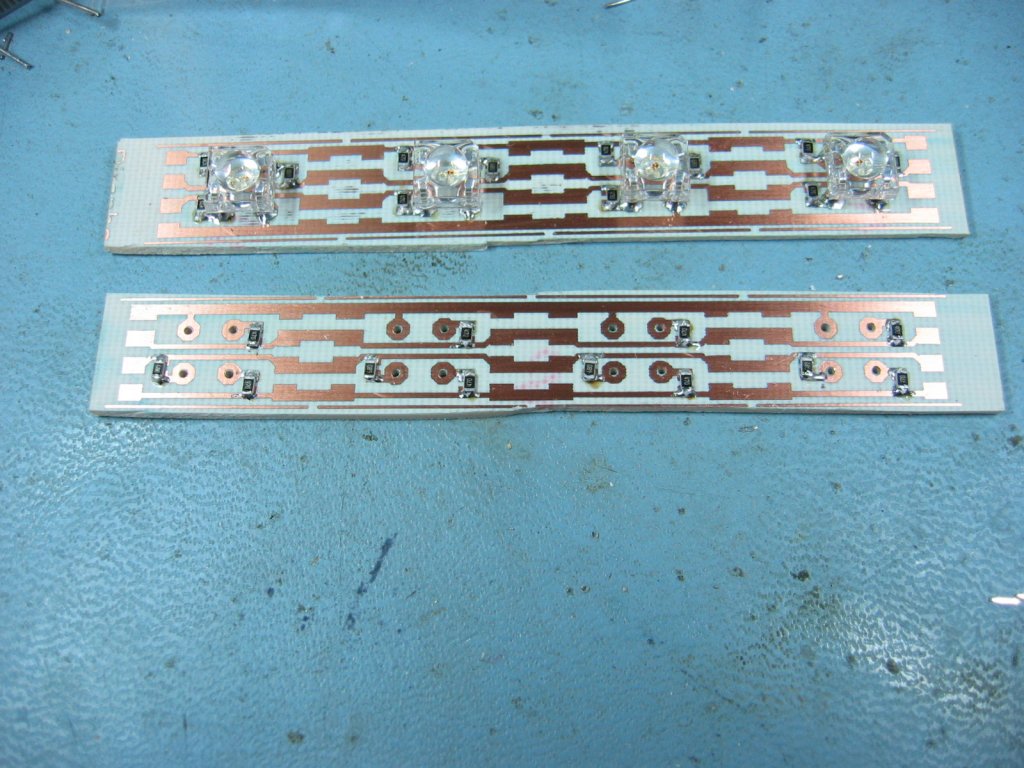

Piranha LED colour bar

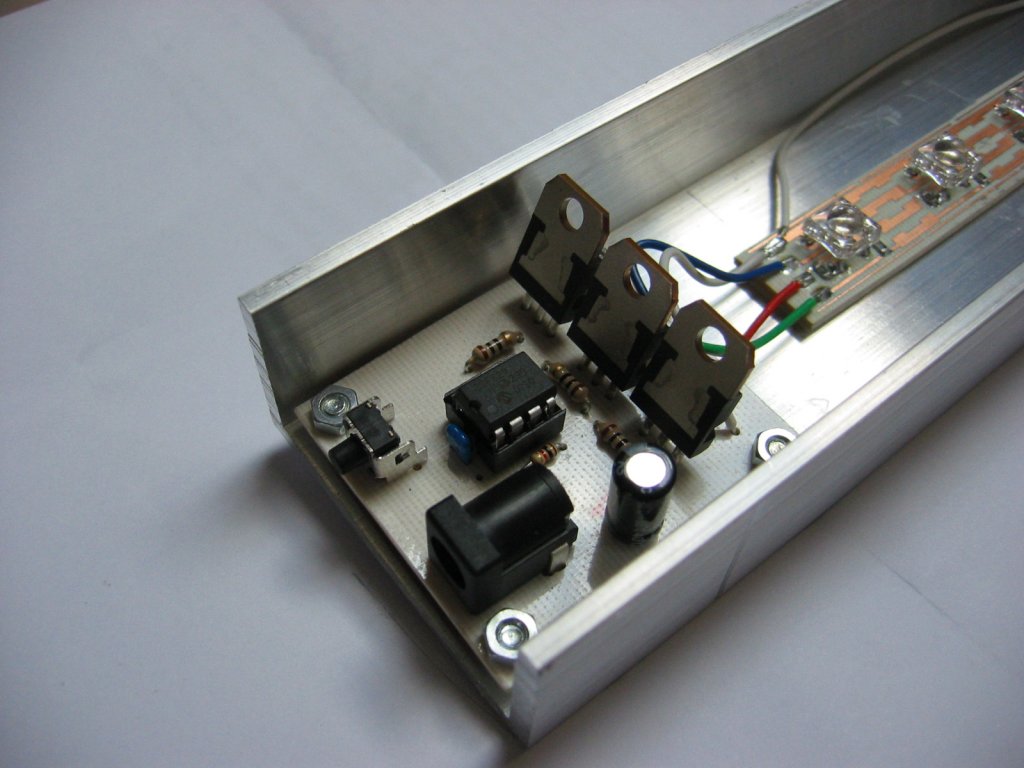

Here's a one off light bar I built using 20 Piranha RGB LEDs and a custom MOSFET driver board.  Assembled into a 25mm x 50mm x 1000mm aluminium 'U' section.  This was fitted under a wall shelf to illuminate the floor.  It's very bright and gives a nice even illumination without any additional diffuser.  Again this uses the code available to download on this page



I used 0805 SMD resistors, 68R for the Red and 47R for the Green and Blue LEDs. Running from a 5 volt supply it draws about 1.7 amps max.

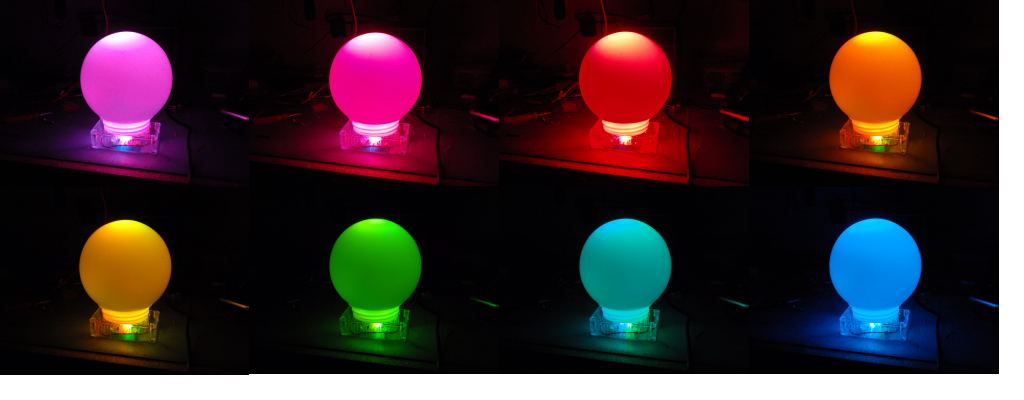

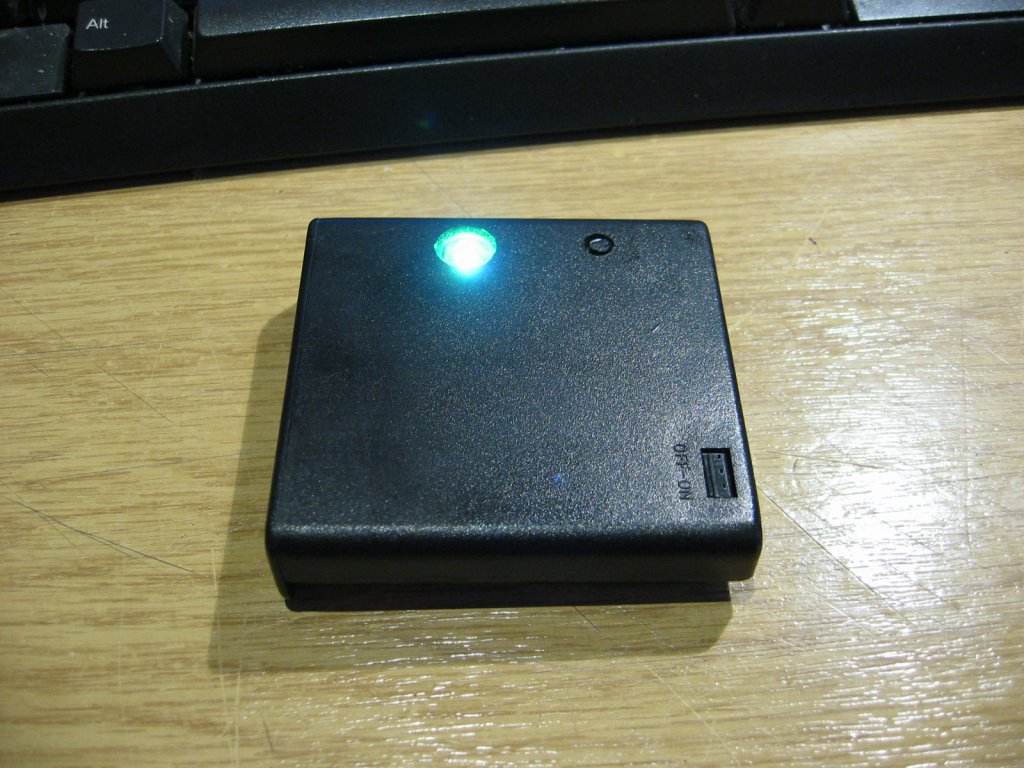

  • A battery operated mini RGB mood lamp using Piranha RGB LED.

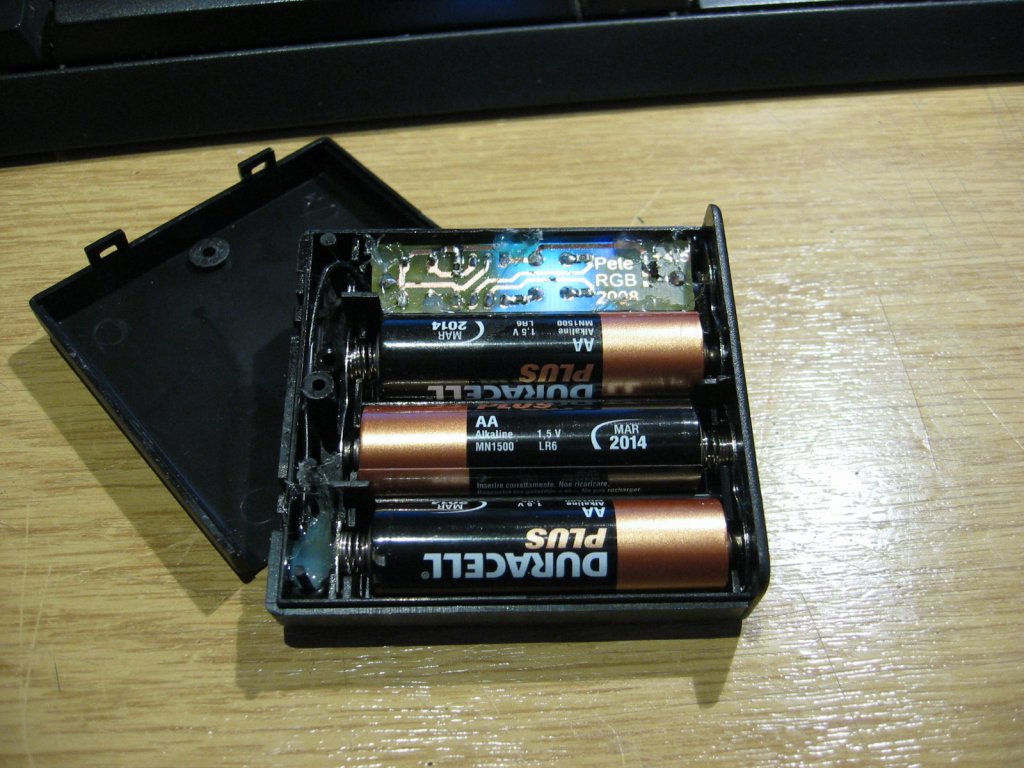

    Housed in a four AA battery holder, modified to use three batteries with the PIC and RGB LED controller PCB located in the space where the fourth battery would normally fit.

    Download the  Schematic for battery powered version

    (Battery box from Rapid Electronics, part # 18-2905)

    When the mode button is held for over 1.5seconds the PIC goes to sleep. When the PIC is sleeping pressing and holding the mode button for 1.5 seconds will wake the it again so there is no need for an on/off switch.

    After I saw these illuminated awards pictured below I couldn't help but have a go at making one myself.  These were based on my  code here on this page.




Code Download

If you don't want to buy a programmer you can buy the  bare PCB and a PIC ready programmed with V3 firmware and a selection of sequences from my online shop.

There are two versions of firmware available for this project.  Version 3 adds a run/hold function that allows the sequence and colour to be 'frozen' but is otherwise the same as Version 2.  Both versions can be downloaded here and version 2 will remain available indefinitely.

Description Filename Download link

Version 2 Source code rgbsa-inet.zip
V2.0.2 09/06/2007
download
V2 HEX file ready to program
for 12F629/675
rgbsa-int675.HEX
V2.0.2  09/06/2007
download
V2 HEX file ready to program
for 12F683
rgbsa-int683.HEX
V2.0.2  09/06/2007
download

Version 3 Source code genRGBsa.zip
V3.0.3 28/09/2008
download
V3 HEX file ready to program
for 12F629/675
rgbsa303_629.HEX
V3.0.3  28/09/2008
download
checksum 97E0

Full details and operating guide for Version 3 firmware can be found here

The PIC microcontroller will need programming with the firmware below.  If you don't already have a programmer I recommend you buy the PICKit2 from Microchip.  You can buy it from most of the large component suppliers worldwide, or from Microchip Direct (but shipping is expensive).

  • (Part Number: PG164120 - PICkit 2 Microcontroller Programmer)
  • (Part Number: DV164120 - PICkit 2 Starter Kit )




Format of the Sequence Data

The data used by the application for the RGB sequences is held in the file 'sequenceData.inc'  You can edit this file to add, remove or change the data provided.  You must ensure that it follows the format described.  In particular pay attention to the 'end of sequence' and 'end of all data' markers and also ensure that each line of sequence data contains five comma separated entries. (see screen dump below)

A really useful on-line utility for simulating the sequences can be found here:
RGB LED Simulator
(thanks to Marek 'Marki' Podmaka  for creating and sharing this simulator)


In the screen dump above note the 'end_of_sequence' markers circled in red and the 'end_of_all_data' marker circled in purple.

You must have at least one sequence present up to a maximum of 256 individual sequences, although you're likely to run out of available memory on the PIC before you reach this limit.

  1. Each line of data starts with a 'dt' (data table) assembler directive.

  2. All data is specified using decimal values.

  3. Each data value must be separated by a comma

  4. The sequence data on each line has five fields:

    1. Fade Rate: speed the colours fade from the current values to the new values. Each step occurs at an interval of 5ms x Fade Rate.

      • Fade Rate value of 0 indicates the RGB values will be updated immediately without fading.

      • Fade Rate value must not be set to 255 except to indicate end of sequence. (see e. below)


    2. Hold Time: after fade completes, delay before moving to next line of data. Interval is 50mS x Hold Time

      • Hold Time value of 255 following a Fade Rate of 255 indicates end_of_all_sequence data.


    3. Red PWM value. 0 = 0% (LED off) through to  255 = 100% (LED fully on)

    4. Green PWM value. 0 = 0% (LED off) through to  255 = 100% (LED fully on)

    5. Blue PWM value. 0 = 0% (LED off) through to  255 = 100% (LED fully on)

      • Typically changes in LED brightness are more noticeable between 0 and 128 than from 128 to 255.

  5. End of the current sequence data is indicated by the Fade Rate field being set to '255'.  When the application encounters this it restarts the sequence from the beginning.

  6. At the end of all available sequence data both the Fade Rate and Hold Time fields must be set to '255'

After editing sequenceData.inc the file should be saved and the rgbsa-inet.asm reassembled. The resulting rgbsa-inet.hex file can them be programmed into the PIC.


Updates

September 2010

Revised version of this project now supports 5mm LEDs and 4-pin Superflux square LEDs, available as PCB only or complete kit of parts.

For details see here

April 2007

I've been working on a constant current source for 350mA Luxeon type LEDs that can be used with RGB LED PWM controller on this page and the simple serial controller also on this web site.

For details see here



October 2007

For a serial controlled addressable RGB LED PWM controller, supporting up to 128 drivers with individual addresses

 see details here


Saving the Internal Oscillator calibration instruction.

For details on the internal oscillator calibration word, download the Microchip datasheet for the 12F629 / 675 and read section 9.2 and in particular sub-section 9.2.5.1

This only applies to the 12F629 & 12F675.  The 12F683 uses a different method for calibration

See my tip to make sure you will never lose the OSCCAL setting

If you have erased the OSCCAL setting, use this circuit and code to recover it



FAQ:

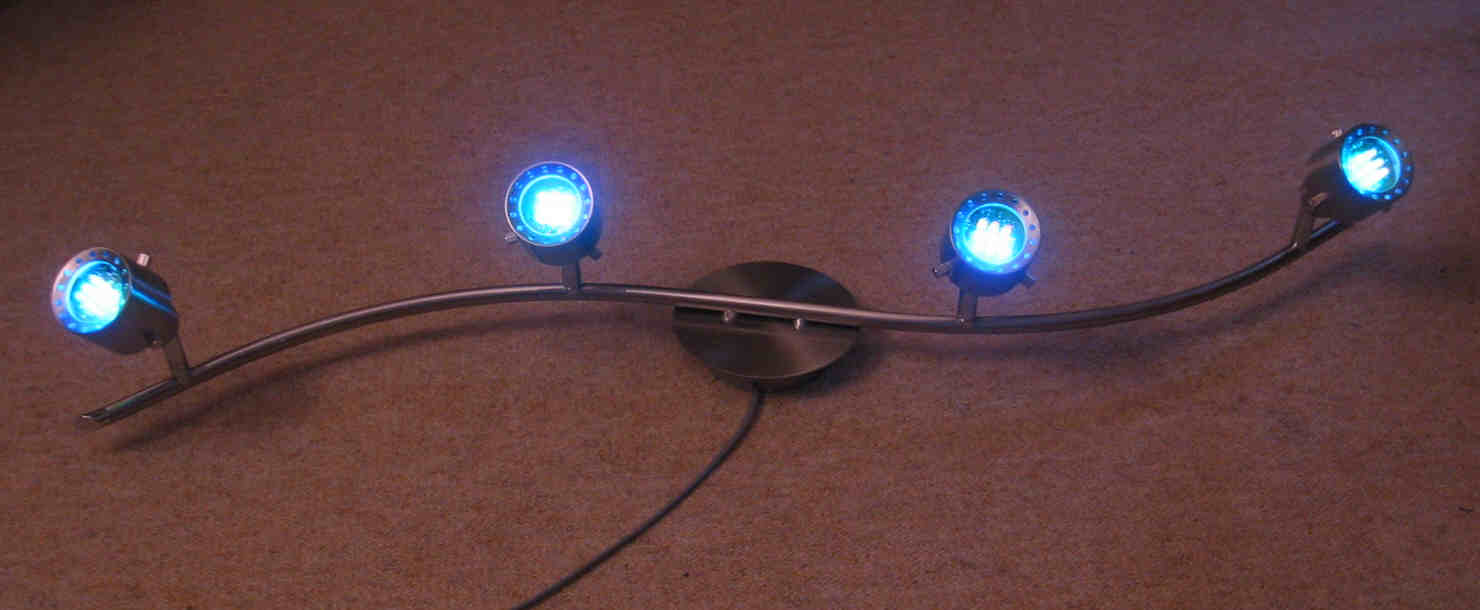

  • Multiple RGB lights not staying in sync
    This note follows a query I had from someone who built these RGB lights.  Because the timing is generated from the internal 4Mhz oscillator and there is no way to synchronize each device with others, even if they are running the same sequence, the colours quickly get out of sync with each other.

    If you're building a light bar or any application where you need more than one unit and they need to stay in sync you should build the 'serial controlled RGB driver'.


  • Oscillator Calibration Instruction
    I've had a number of enquiries from people who can't get the code to work and it has transpired that they / their programmer has erased the OSCCAL value. Without the calibration RETLW instruction the code crashes so you must ensure that it is present or the code will not run.

  • How can I recalibrate the internal oscillator on a 12F629 or 12F675?

    I've written an application that will enable you to recalibrate a 12F6xx PIC
    See details and download code here

    Alternatively just insert a RETLW 0x80 instruction at address 0x3FF.  This won't calibrate the oscillator correctly but the code will now run.

    See my tip to make sure you will never loose the OSCCAL setting

    November 2008
    Microchip's PICkit2 Development Programmer/Debugger has a feature that will calculate and replace a missing OSCCAL value.


  • Verify Errors after programming
    The RGB light programme code uses the PICs EEPROM to store the last used mode.  When the PIC is powered up for the first time after it has been programmed it checks to see if the last sequence value saved in EEPROM is less than or equal to the number of available sequences. If it is not, the code resets the value in the EEPROM to 0.

    I had a series of e-mails from a guy in Greece who had lots of problems with "Verify 0000!" errors.  I eventually built the programmer hardware he was using and ran the software to try and find out what was happening.  It turned out that this particular combination of programmer/software was powering up the PIC between writing the code into the PIC and verifying it.  This caused the EEPROM to get initialised to "00" but the software was still expecting "FF" so the verify failed.

    The programmer hardware was PLMS OziPIC'er  and the software was IC-Prog 1.05D.  I must stress that apart from this idiosyncrasy this is a perfectly capable PIC programming setup and once aware of what is happening it is easy to account for and work around.

    (A special thank you to Panagiotis from Athens - thanks to the Internet, his excellent English and much patience we got to the bottom of this problem despite the language barrier and the distance)

  • Editing, adding changing the RGB sequence data.

    All the sequence data is now held in the sequenceData.inc file so it is really easy to add your own sequences.  The application works out how many sequences are present, where they start and finish and takes care of page boundary crossing. All you have to do is put the correctly formatted data into the file, save it then reassemble.

    Please take your time when editing the sequenceData.inc file since errors are likely to cause the RGB Driver to do unexpected things or crash.

    If you see an 'Warning [220]' error during assembly like that shown below, you've added more sequence data than the PIC has available memory.


    Clean: Deleting intermediary and output files.
    Clean: Done.
    Executing: "C:\Program Files\Microchip\MPASM Suite\MPAsmWin.exe" /q /p12F675 "rgbsa-inet.asm" /l"rgbsa-inet.lst" /e"rgbsa-inet.err"
    Warning[220] C:\CODE\RGBSA-INET.ASM 158 : Address exceeds maximum range for this processor.


    If you see an Error [112] message during assembly check for missing comma separators in the sequenceData.inc file

    Clean: Deleting intermediary and output files.
    Clean: Done.
    Executing: "C:\Program Files\Microchip\MPASM Suite\MPAsmWin.exe" /q /p12F675 "rgbsa-inet.asm" /l"rgbsa-inet.lst" /e"rgbsa-inet.err"
    Error[112] C:\CODE\SEQUENCEDATA.INC 56 : Missing operator
