RGB LED Mood Light

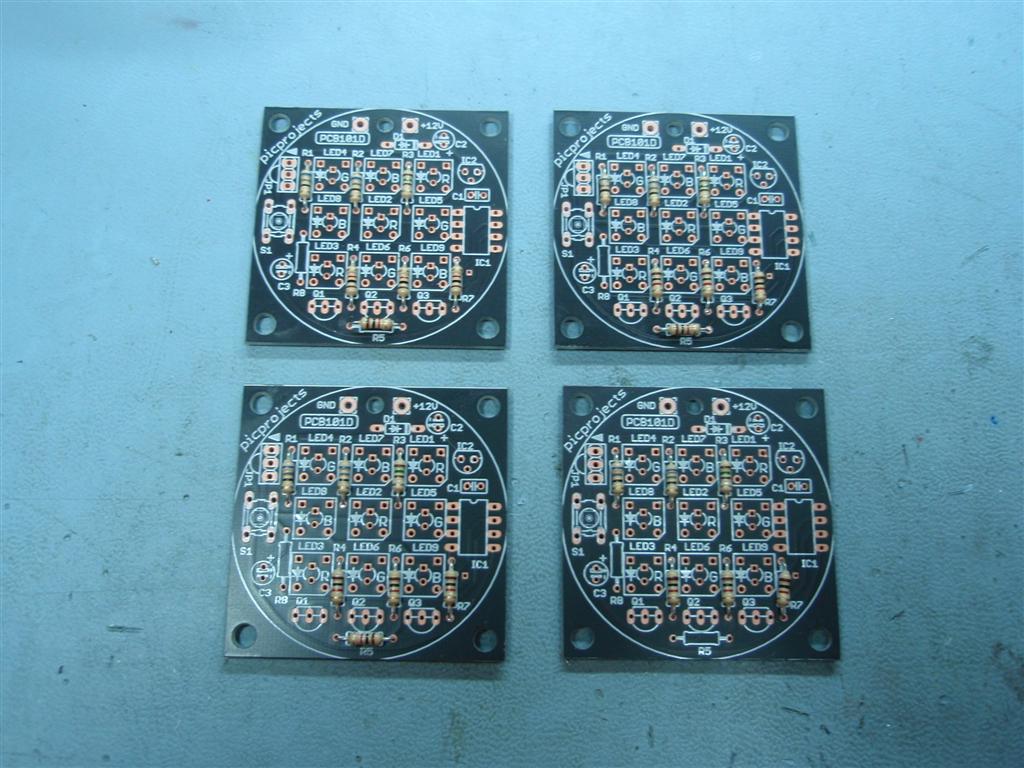

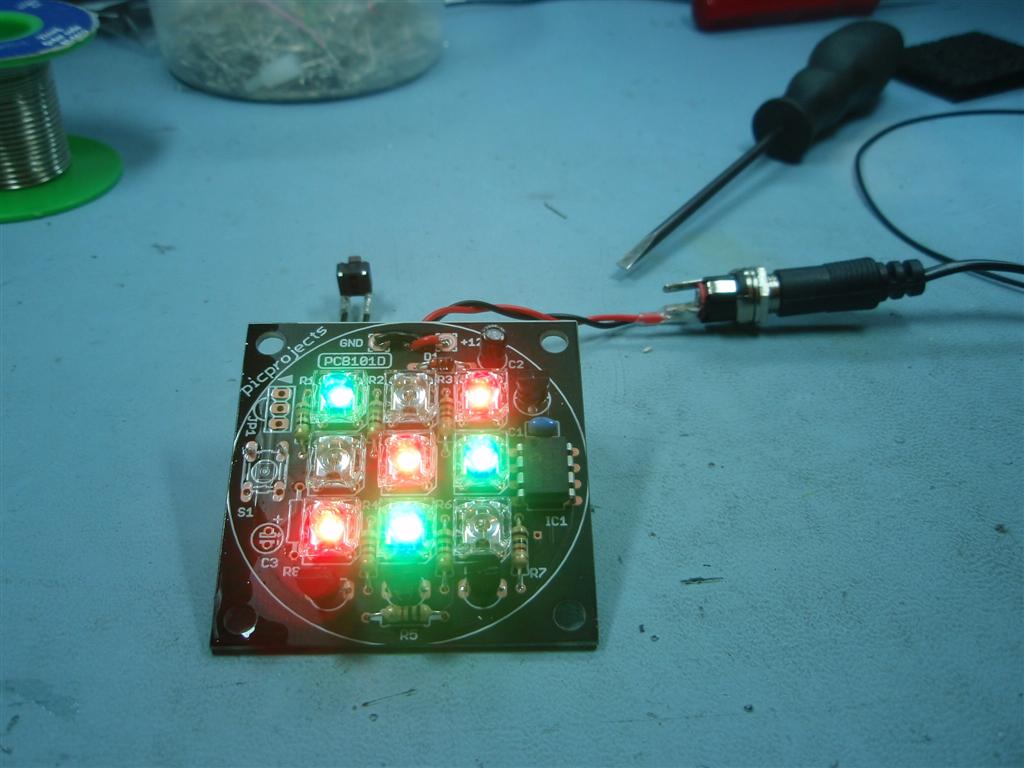

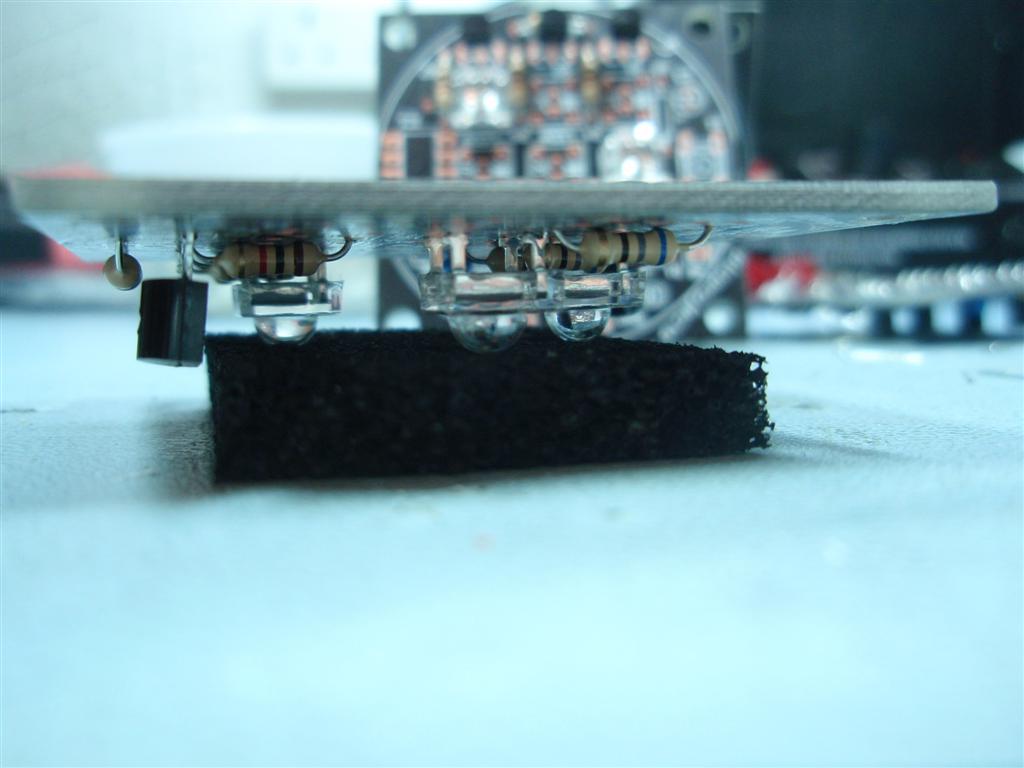

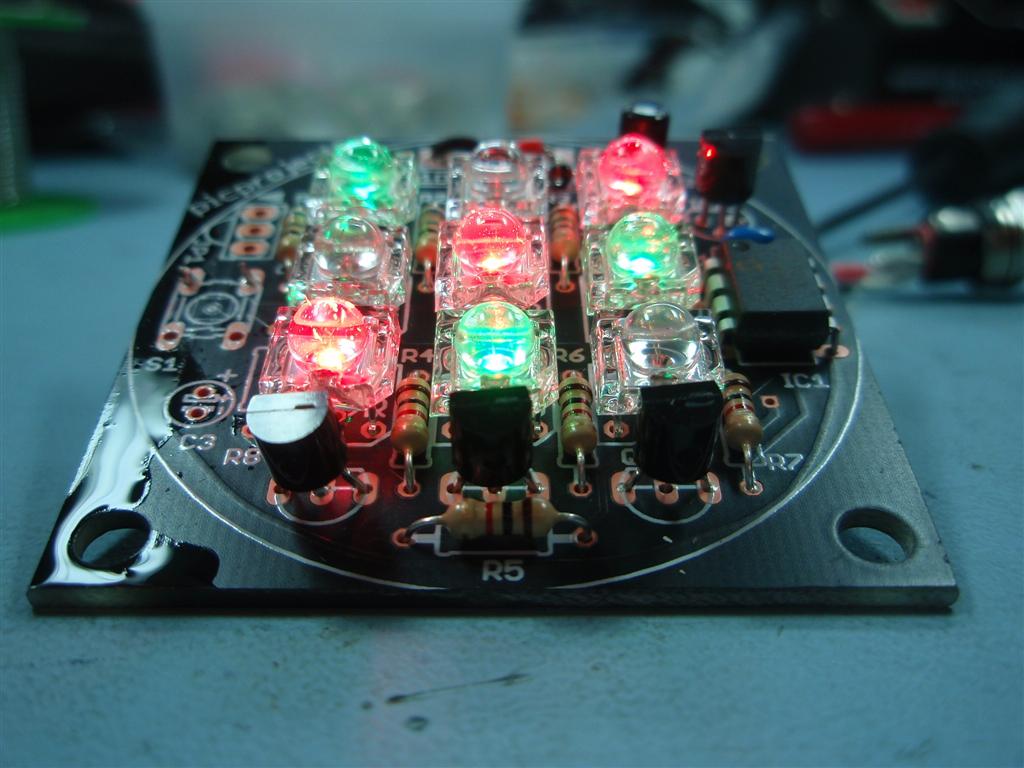

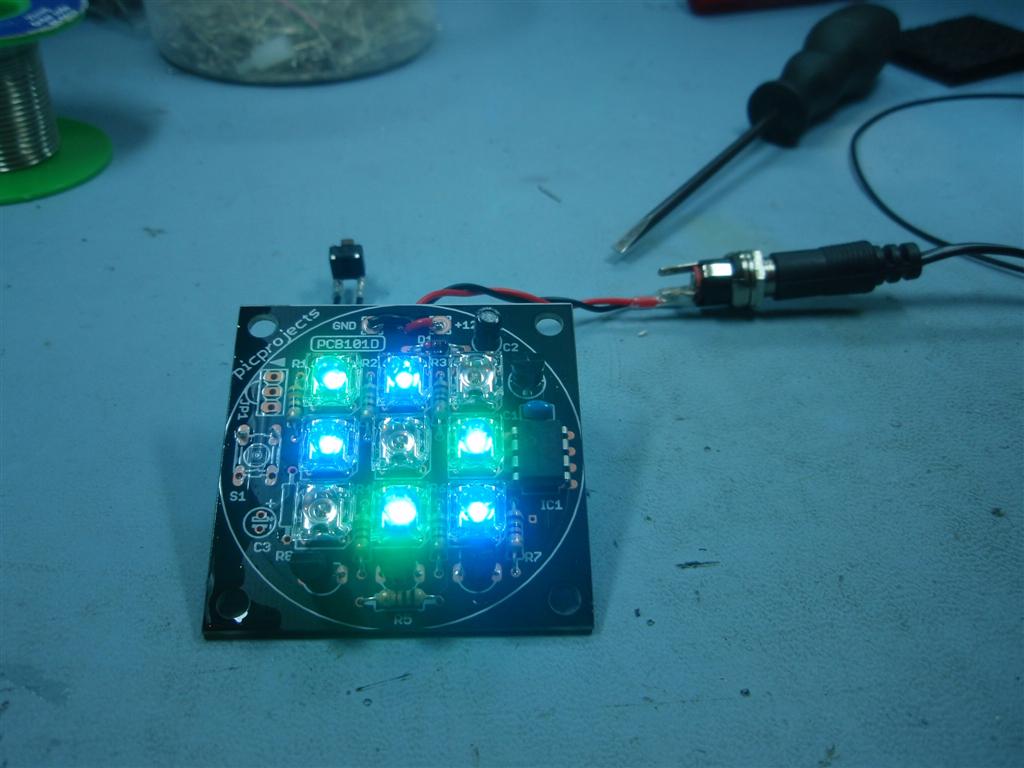

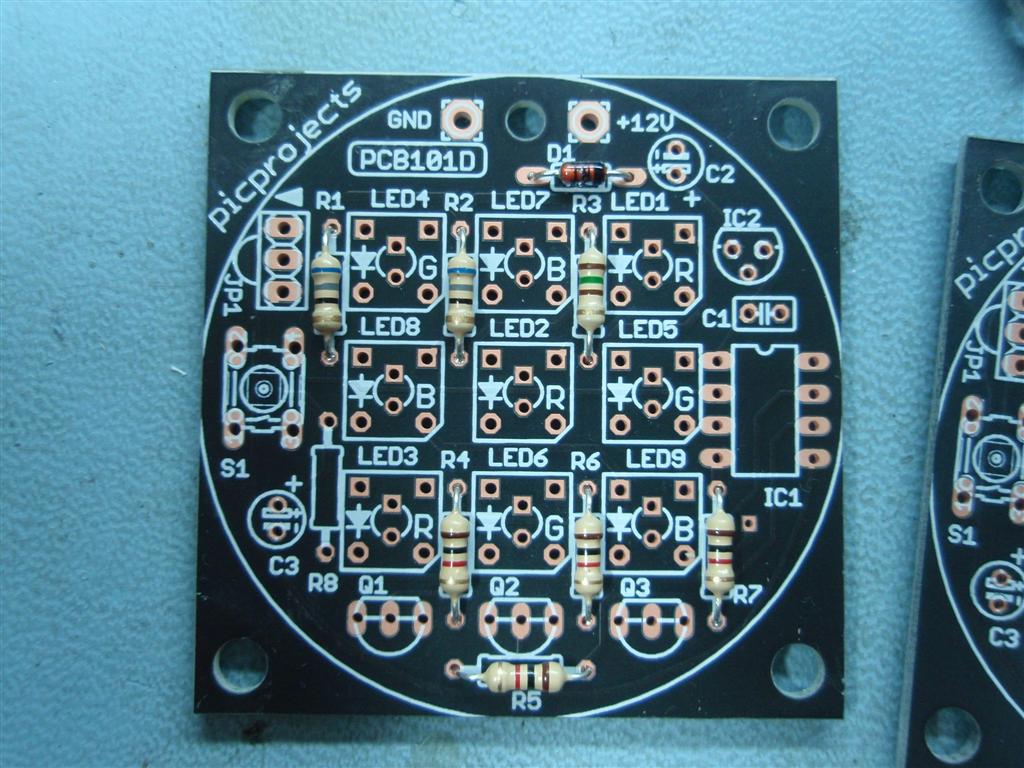

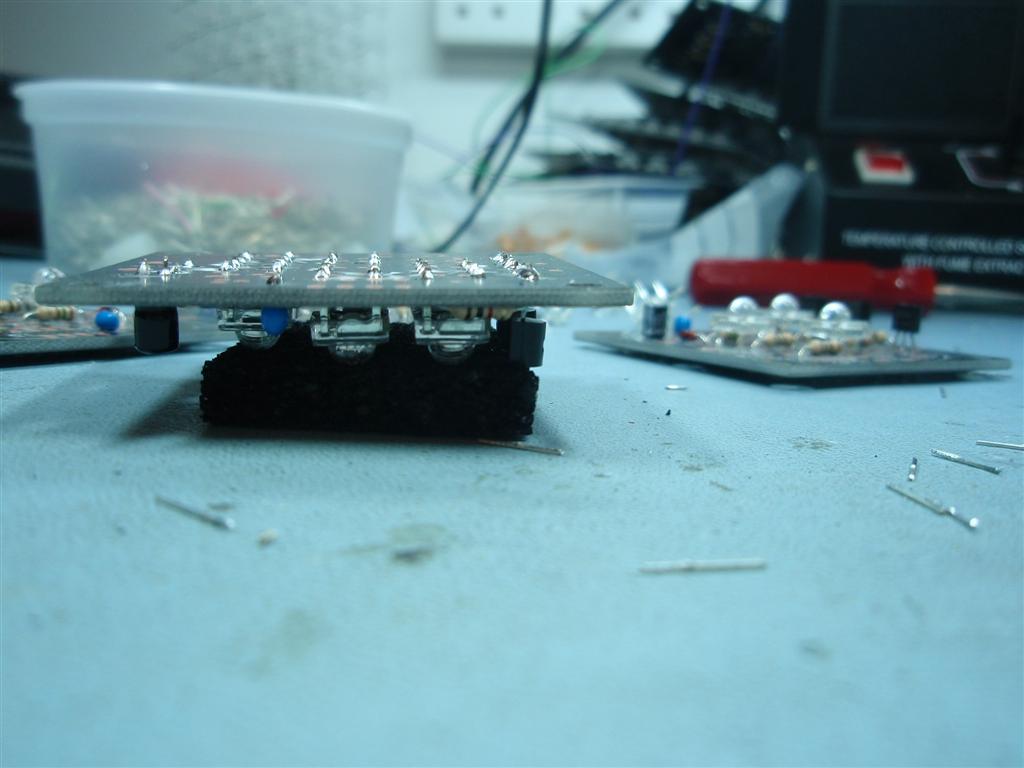

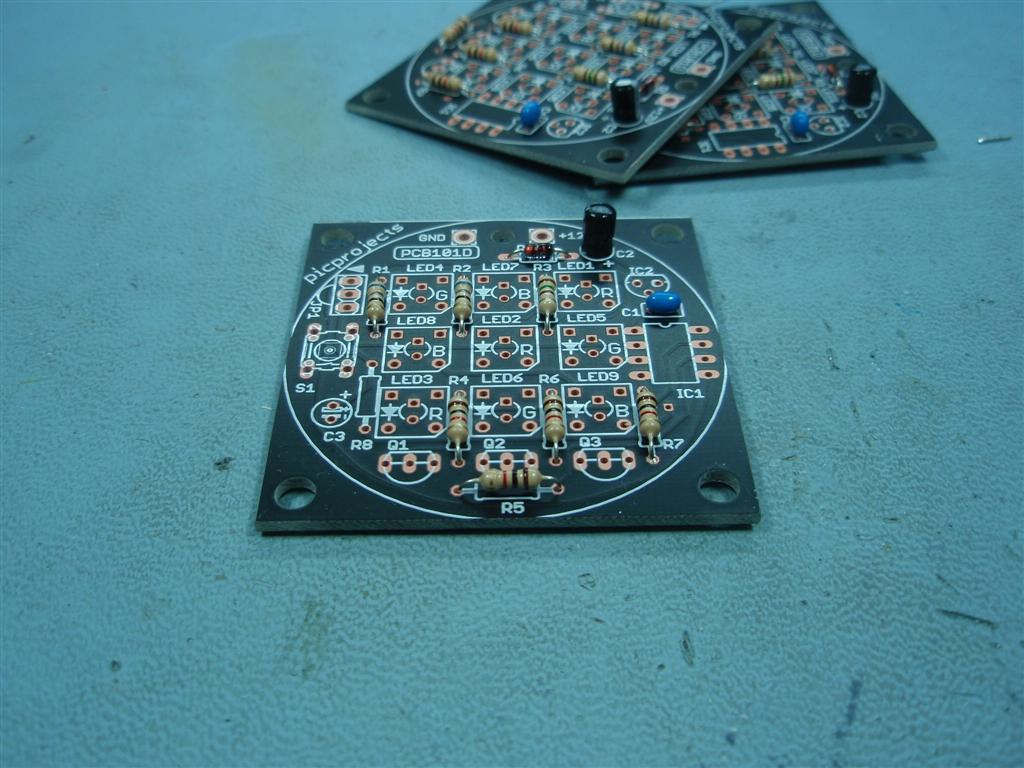

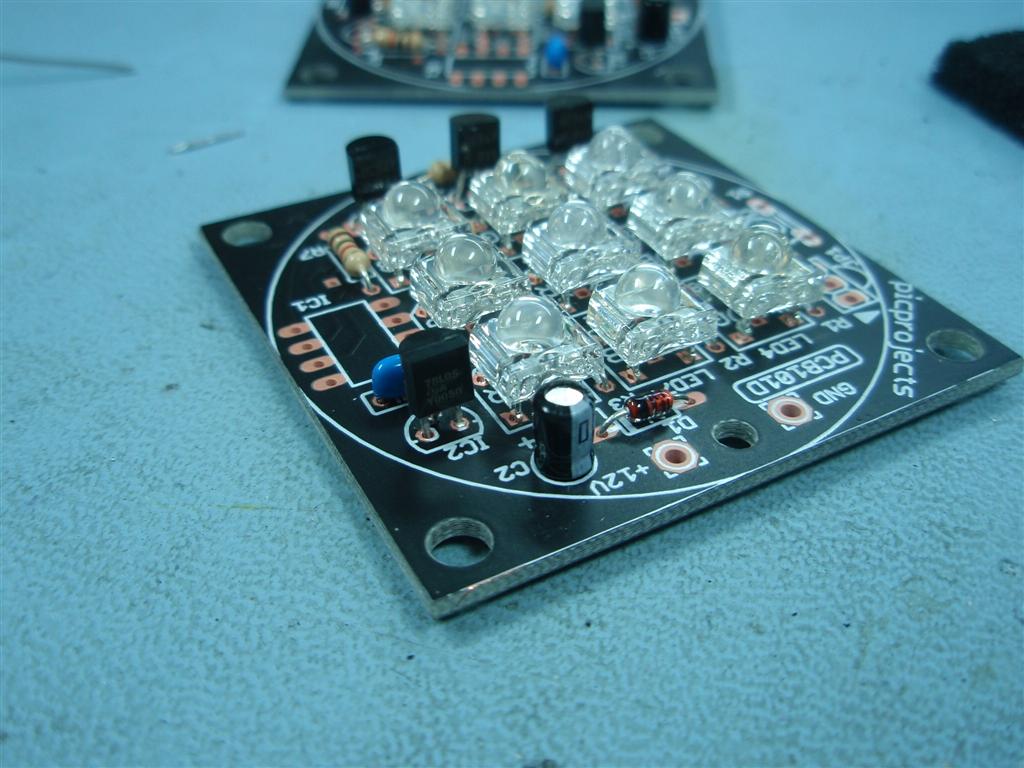

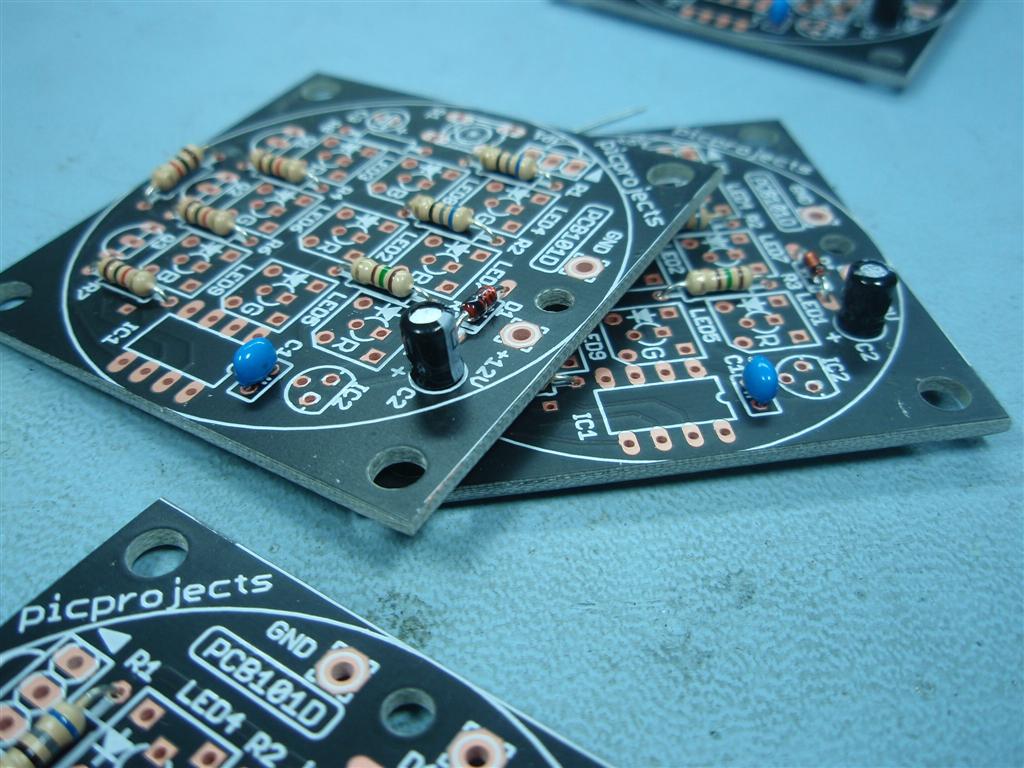

On this page are some photos taken while assembling boards to go into four mood lights I was making for Christmas presents.  They are presented here just to give some additional references for assembling the PCB and building your own mood lights

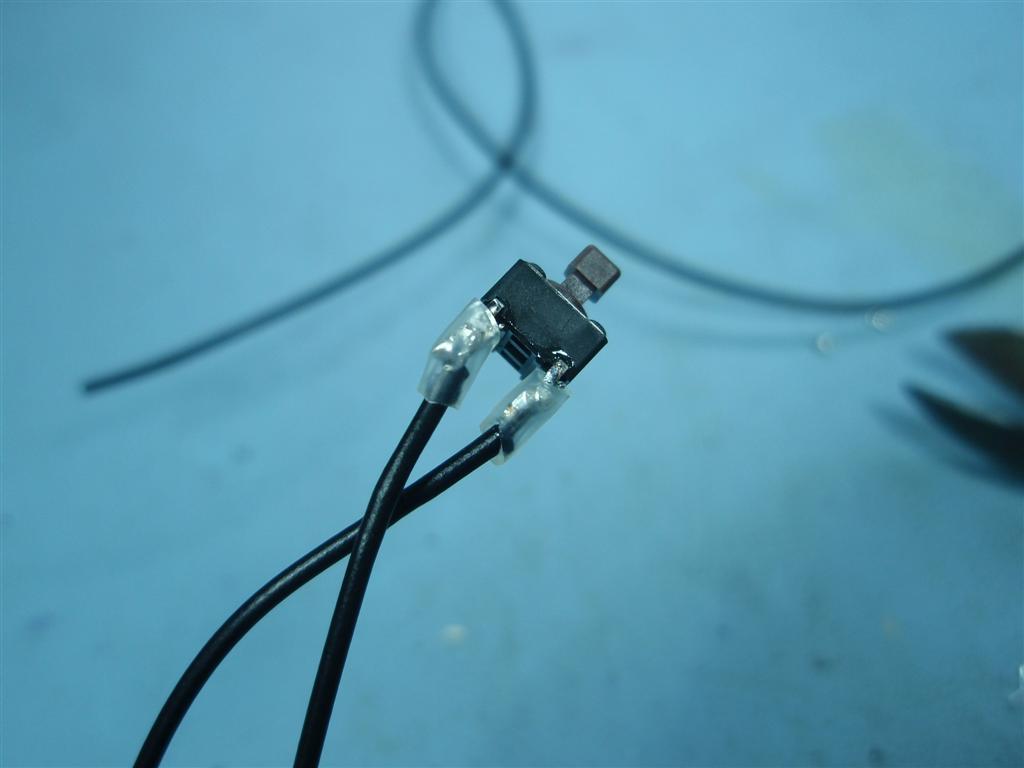

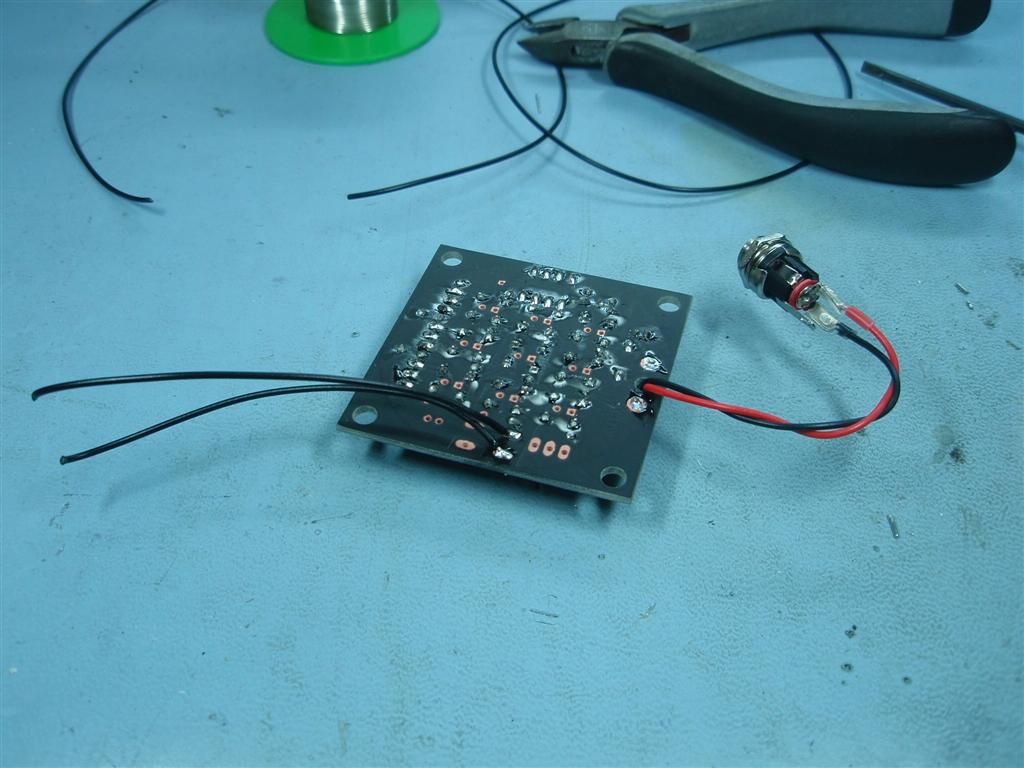

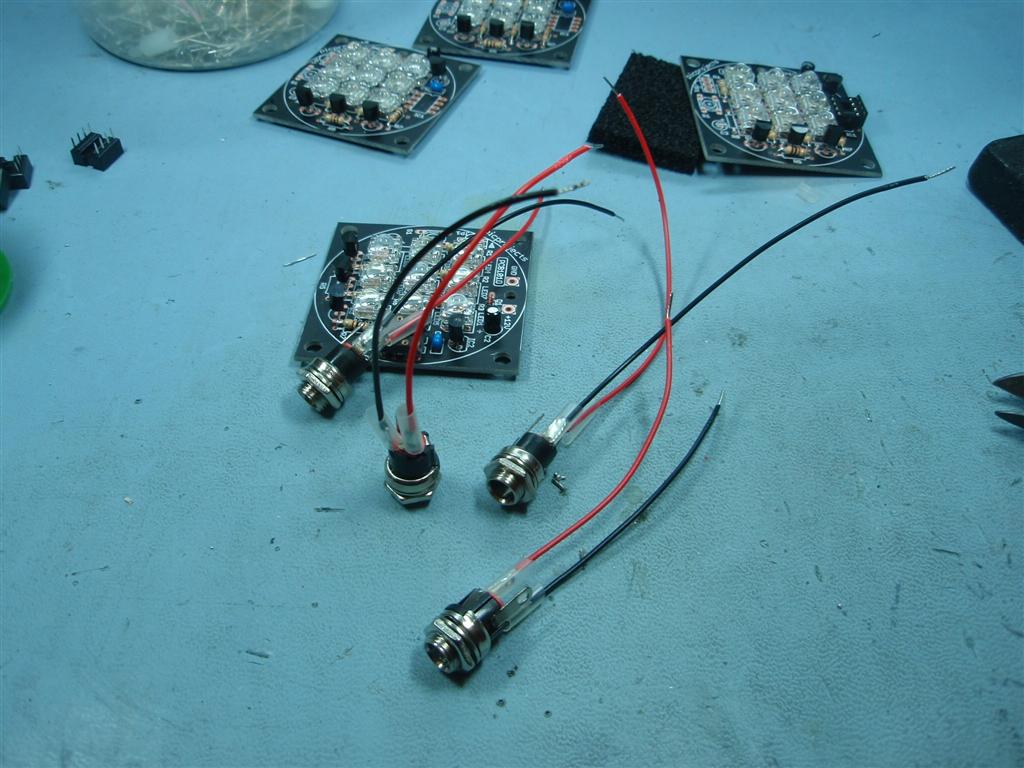

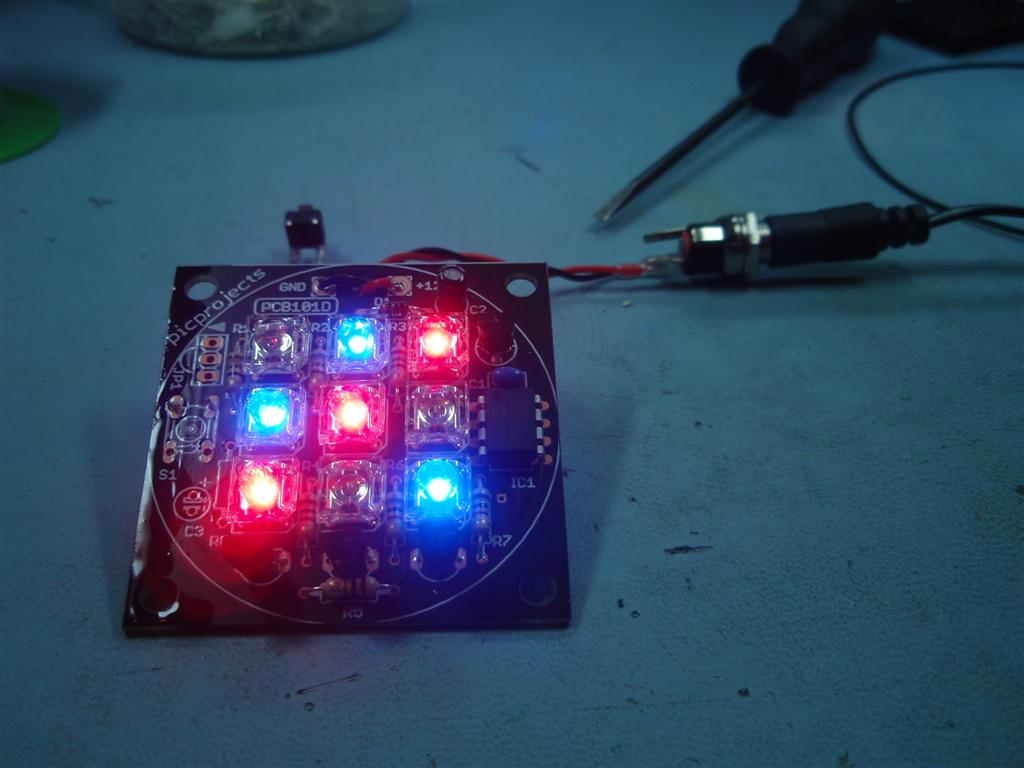

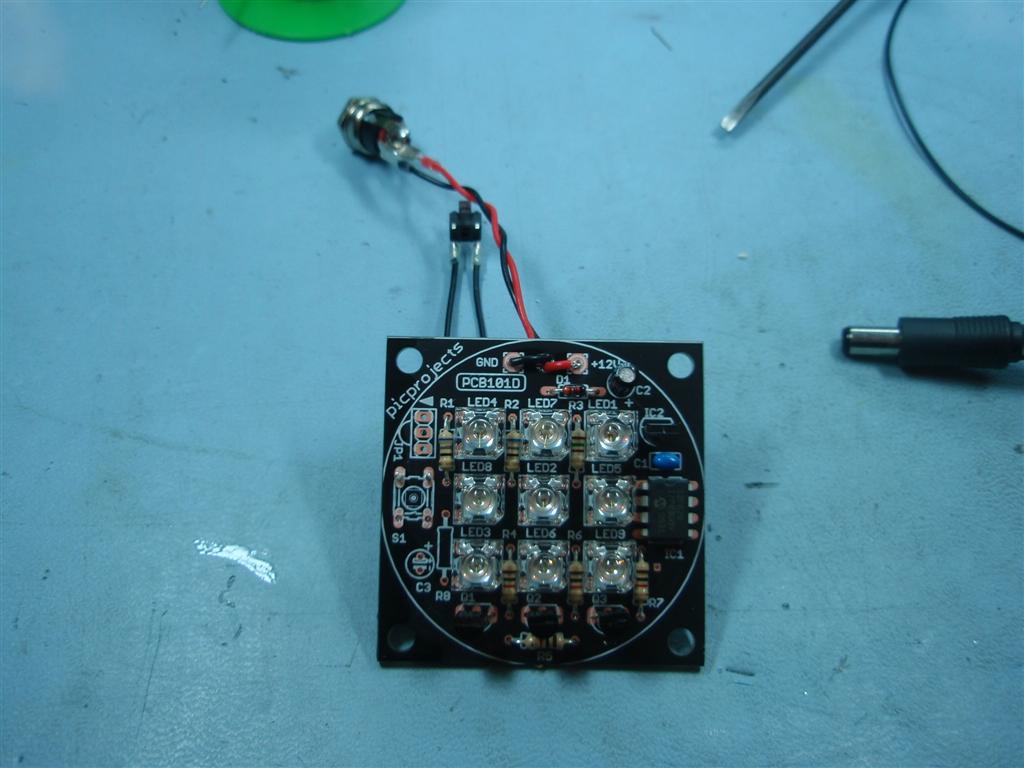

The switch for the lights I am building here needed to be mounted on the outside of the assembled light so rather than soldering it directly to the PCB it is connected by some short leads.

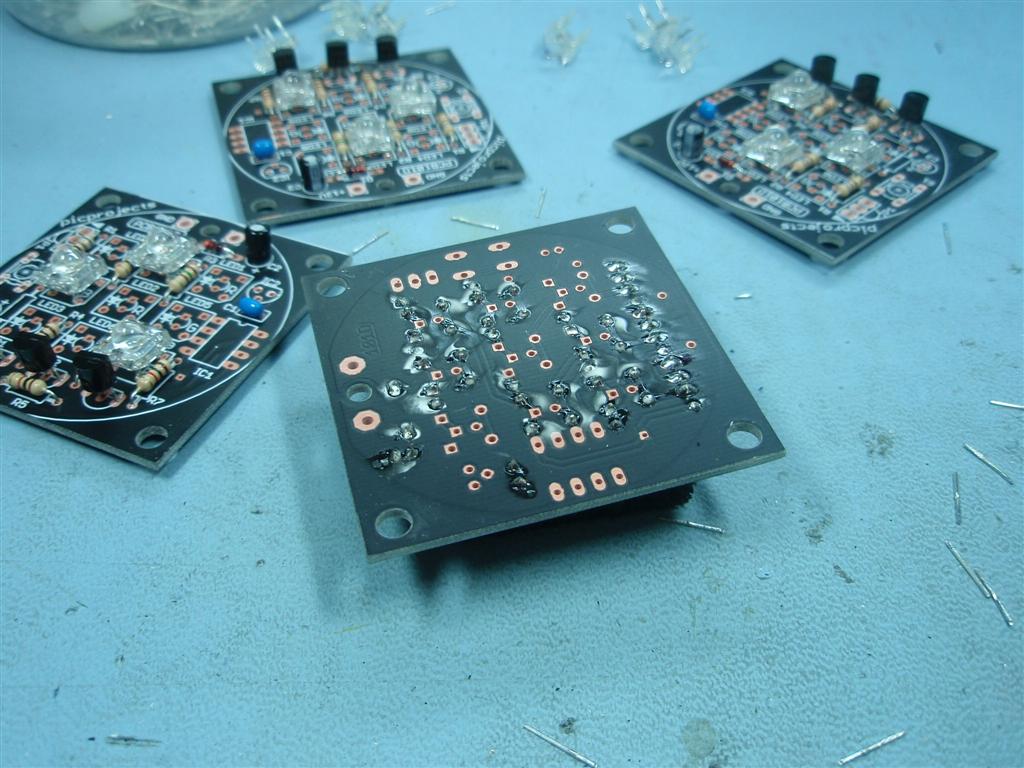

I also soldered the PIC directly to the PCB rather than using a socket since I know the people receiving them aren't likely to want to reprogram the PIC and heaven forbid they develop a fault, well I'll end up fixing up it anyway.
